# Flix

**Flix** (*flight + X*) — open source ESP32-based quadcopter made from scratch.

<table>
  <tr>
    <td align=center><strong>Version 1.1</strong> (3D-printed frame)</td>
    <td align=center><strong>Version 0</strong></td>
  </tr>
  <tr>
    <td><img src="docs/img/flix1.1.jpg" width=500 alt="Flix quadcopter"></td>
    <td><img src="docs/img/flix.jpg" width=500 alt="Flix quadcopter"></td>
  </tr>
</table>

## Features

* Dedicated for education and research.
* Made from general-purpose components.
* Simple and clean source code in Arduino (<2k lines firmware).
* Control using USB gamepad, remote control or smartphone.
* Wi-Fi and MAVLink support.
* Wireless command line interface and analyzing.
* Precise simulation with Gazebo.
* Python library.
* Textbook on flight control theory and practice ([in development](https://quadcopter.dev)).
* *Position control (using external camera) and autonomous flights¹*.

*¹ — planned.*

## It actually flies

See detailed demo video: https://youtu.be/hT46CZ1CgC4.

<a href="https://youtu.be/hT46CZ1CgC4"><img width=500 src="https://i3.ytimg.com/vi/hT46CZ1CgC4/maxresdefault.jpg"></a>

Version 0 demo video: https://youtu.be/8GzzIQ3C6DQ.

<a href="https://youtu.be/8GzzIQ3C6DQ"><img width=500 src="https://i3.ytimg.com/vi/8GzzIQ3C6DQ/maxresdefault.jpg"></a>

Usage in education (RoboCamp): https://youtu.be/Wd3yaorjTx0.

<a href="https://youtu.be/Wd3yaorjTx0"><img width=500 src="https://i3.ytimg.com/vi/Wd3yaorjTx0/sddefault.jpg"></a>

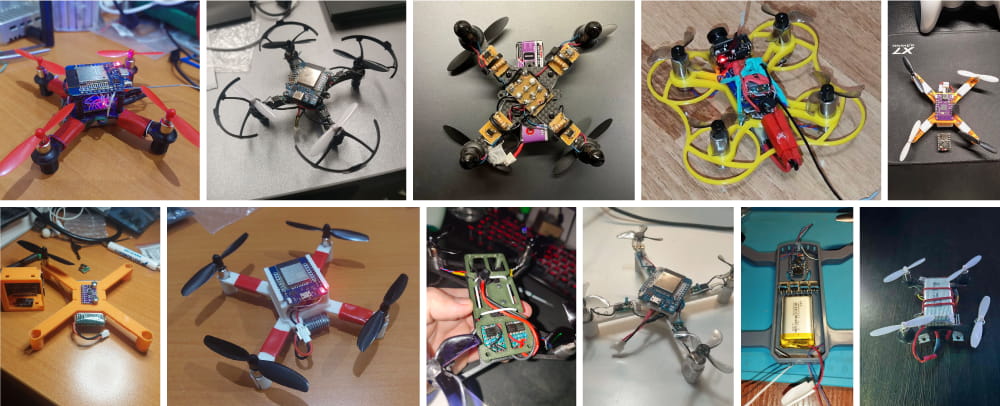

See the [user builds gallery](docs/user.md):

<a href="docs/user.md"><img src="docs/img/user/user.jpg" width=500></a>

## Simulation

The simulator is implemented using Gazebo and runs the original Arduino code:

<img src="docs/img/simulator1.png" width=500 alt="Flix simulator">

## Documentation

1. [Assembly instructions](docs/assembly.md).
2. [Usage: build, setup and flight](docs/usage.md).
3. [Simulation](gazebo/README.md).
4. [Python library](tools/pyflix/README.md).

Additional articles:

* [User builds gallery](docs/user.md).
* [Firmware architectural overview](docs/firmware.md).
* [Troubleshooting](docs/troubleshooting.md).
* [Log analysis](docs/log.md).

## Components

|Type|Part|Image|Quantity|
|-|-|:-:|:-:|
|Microcontroller board|ESP32 Mini|<img src="docs/img/esp32.jpg" width=100>|1|
|IMU (and barometer¹) board|GY‑91, MPU-9265 (or other MPU‑9250/MPU‑6500 board)<br>ICM20948V2 (ICM‑20948)³<br>GY-521 (MPU-6050)³⁻¹|<img src="docs/img/gy-91.jpg" width=90 align=center><br><img src="docs/img/icm-20948.jpg" width=100><br><img src="docs/img/gy-521.jpg" width=100>|1|
|Boost converter (optional, for more stable power supply)|5V output|<img src="docs/img/buck-boost.jpg" width=100>|1|
|Motor|8520 3.7V brushed motor.<br>Motor with exact 3.7V voltage is needed, not ranged working voltage (3.7V — 6V).<br>Make sure the motor shaft diameter and propeller hole diameter match!|<img src="docs/img/motor.jpeg" width=100>|4|
|Propeller|55 mm (alternatively 65 mm)|<img src="docs/img/prop.jpg" width=100>|4|
|MOSFET (transistor)|100N03A or [analog](https://t.me/opensourcequadcopter/33)|<img src="docs/img/100n03a.jpg" width=100>|4|
|Pull-down resistor|10 kΩ|<img src="docs/img/resistor10k.jpg" width=100>|4|
|3.7V Li-Po battery|LW 952540 (or any compatible by the size)|<img src="docs/img/battery.jpg" width=100>|1|
|Battery connector cable|MX2.0 2P female|<img src="docs/img/mx.png" width=100>|1|
|Li-Po Battery charger|Any|<img src="docs/img/charger.jpg" width=100>|1|
|Screws for IMU board mounting|M3x5|<img src="docs/img/screw-m3.jpg" width=100>|2|
|Screws for frame assembly|M1.4x5|<img src="docs/img/screw-m1.4.jpg" height=30 align=center>|4|
|Frame main part|3D printed²: [`stl`](docs/assets/flix-frame-1.1.stl) [`step`](docs/assets/flix-frame-1.1.step)<br>Recommended settings: layer 0.2 mm, line 0.4 mm, infill 100%.|<img src="docs/img/frame1.jpg" width=100>|1|
|Frame top part|3D printed: [`stl`](docs/assets/esp32-holder.stl) [`step`](docs/assets/esp32-holder.step)|<img src="docs/img/esp32-holder.jpg" width=100>|1|
|Washer for IMU board mounting|3D printed: [`stl`](docs/assets/washer-m3.stl) [`step`](docs/assets/washer-m3.step)|<img src="docs/img/washer-m3.jpg" width=100>|2|
|Controller (recommended)|CC2500 transmitter, like BetaFPV LiteRadio CC2500 (RC receiver/Wi-Fi).<br>Two-sticks gamepad (Wi-Fi only) — see [recommended gamepads](https://docs.qgroundcontrol.com/master/en/qgc-user-guide/setup_view/joystick.html#supported-joysticks).<br>Other⁵|<img src="docs/img/betafpv.jpg" width=100><img src="docs/img/logitech.jpg" width=80>|1|
|*RC receiver (optional)*|*DF500 or other³*|<img src="docs/img/rx.jpg" width=100>|1|
|Wires|28 AWG recommended|<img src="docs/img/wire-28awg.jpg" width=100>||
|Tape, double-sided tape||||

*¹ — barometer is not used for now.*<br>
*² — this frame is optimized for GY-91 board, if using other, the board mount holes positions should be modified.*<br>
*³ — you also may use any transmitter-receiver pair with SBUS interface.*

Tools required for assembly:

* 3D printer.
* Soldering iron.
* Solder wire (with flux).
* Screwdrivers.
* Multimeter.

Feel free to modify the design and or code, and create your own improved versions. Send your results to the [official Telegram chat](https://t.me/opensourcequadcopterchat), or directly to the author ([E-mail](mailto:okalachev@gmail.com), [Telegram](https://t.me/okalachev)).

## Schematics

### Simplified connection diagram

<img src="docs/img/schematics1.svg" width=700 alt="Flix version 1 schematics">

*(Dashed elements are optional).*

Motor connection scheme:

<img src="docs/img/mosfet-connection.png" height=400 alt="MOSFET connection scheme">

You can see a user-contributed [variant of complete circuit diagram](https://miro.com/app/board/uXjVN-dTjoo=/?moveToWidget=3458764612338222067&cot=14) of the drone.

### Notes

* Power ESP32 Mini with Li-Po battery using VCC (+) and GND (-) pins.
* Connect the IMU board to the ESP32 Mini using VSPI, power it using 3.3V and GND pins:

  |IMU pin|ESP32 pin|
  |-|-|
  |GND|GND|
  |3.3V|3.3V|
  |SCL *(SCK)*|SVP (GPIO18)|
  |SDA *(MOSI)*|GPIO23|
  |SAO *(MISO)*|GPIO19|
  |NCS|GPIO5|

* Solder pull-down resistors to the MOSFETs.
* Connect the motors to the ESP32 Mini using MOSFETs, by following scheme:

  |Motor|Position|Direction|Prop type|Motor wires|GPIO|
  |-|-|-|-|-|-|
  |Motor 0|Rear left|Counter-clockwise|B|Black & White|GPIO12 (*TDI*)|
  |Motor 1|Rear right|Clockwise|A|Blue & Red|GPIO13 (*TCK*)|
  |Motor 2|Front right|Counter-clockwise|B|Black & White|GPIO14 (*TMS*)|
  |Motor 3|Front left|Clockwise|A|Blue & Red|GPIO15 (*TD0*)|

  Clockwise motors have blue & red wires and correspond to propeller type A (marked on the propeller).
  Counter-clockwise motors have black & white wires correspond to propeller type B.

* Optionally connect the RC receiver to the ESP32's UART2:

  |Receiver pin|ESP32 pin|
  |-|-|
  |GND|GND|
  |VIN|VCC (or 3.3V depending on the receiver)|
  |Signal (TX)|GPIO4¹|

*¹ — UART2 RX pin was [changed](https://docs.espressif.com/projects/arduino-esp32/en/latest/migration_guides/2.x_to_3.0.html#id14) to GPIO4 in Arduino ESP32 core 3.0.*

## Resources

* Telegram channel on developing the drone and the flight controller (in Russian): https://t.me/opensourcequadcopter.
* Official Telegram chat: https://t.me/opensourcequadcopterchat.
* Detailed article on Habr.com about the development of the drone (in Russian): https://habr.com/ru/articles/814127/.

## Disclaimer

This is a DIY project, and I hope you find it interesting and useful. However, it's not easy to assemble and set up, and it's provided "as is" without any warranties. There's no guarantee that it will work perfectly, or even work at all.

⚠️ The author is not responsible for any damage, injury, or loss resulting from the use of this project. Use at your own risk!
