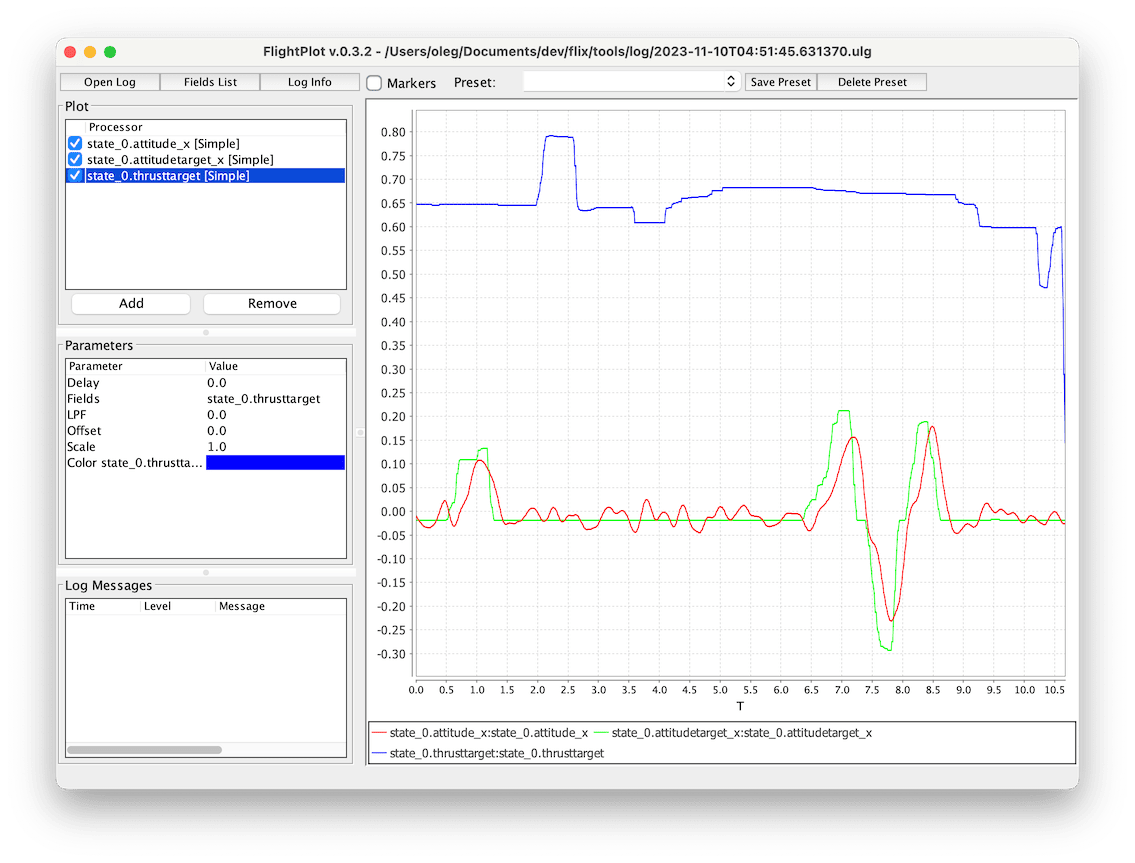

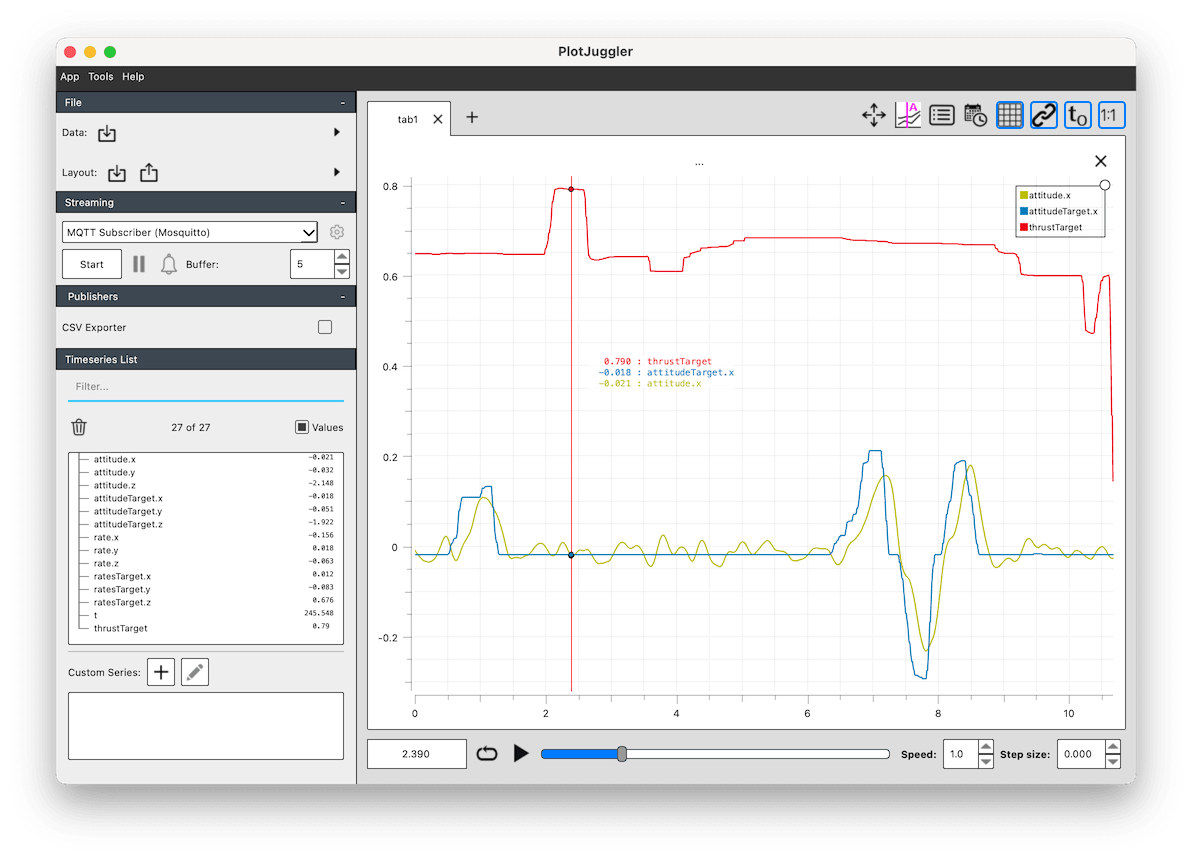

# Log analysis Flix quadcopter uses RAM to store flight log data. The default log capacity is 10 seconds at 100 Hz. This configuration can be adjusted in the `log.ino` file. To perform log analysis, you need to download the log right after the flight without powering off the drone. Then you can use several tools to analyze the log data. ## Log download To download the log, connect the ESP32 using USB right after the flight and run the following command: ```bash make log ``` Logs are stored in `tools/log/*.csv` files. ## Analysis ### PlotJuggler The recommended tool for log analysis is PlotJuggler. 1. Install PlotJuggler using the [official instructions](https://github.com/facontidavide/PlotJuggler?tab=readme-ov-file#installation). 2. Run PlotJuggler and drag'n'drop the downloaded log file there. Choose `t` column to be used as X axis. You can open the most recent downloaded file using the command: ```bash make plot ``` You can perform both log download and run PlotJuggler in one command: ```bash make log plot ``` ### FlightPlot FlightPlot is a powerful tool for analyzing logs in [ULog format](https://docs.px4.io/main/en/dev_log/ulog_file_format.html). This format is used in PX4 and ArduPilot flight software. 1. [Install FlightPlot](https://github.com/PX4/FlightPlot). 2. Flix repository contains a tool for converting CSV logs to ULog format. Build the tool using [the instructions](../tools/csv_to_ulog/README.md) and convert the log you want to analyze. 3. Run FlightPlot and drag'n'drop the converted ULog-file there. ### Foxglove Studio Foxglove is a tool for visualizing and analyzing robotics data with very rich functionality. It can import various formats, but mainly focuses on its own format, called [MCAP](https://mcap.dev). 1. Install Foxglove Studio from the [official website](https://foxglove.dev/download). 2. Flix repository contains a tool for converting CSV logs to MCAP format. First, install its dependencies: ```bash cd tools pip install -r requirements.txt ``` 3. Convert the log you want to analyze: ```bash csv_to_mcap.py log_file.csv ``` 4. Open the log in Foxglove Studio using *Open local file* command.
