Troubleshooting

The sketch doesn't compile

Do the following:

• Check ESP32 core is installed. Check if the version matches the one used in the tutorial.
• Check libraries. Install all the required libraries from the tutorial. Make sure there are no MPU9250 or other peripherals libraries that may conflict with the ones used in the tutorial.
• Check the chosen board. The correct board to choose in Arduino IDE for ESP32 Mini is WEMOS D1 MINI ESP32.

The drone doesn't fly

Do the following:

• Check the battery voltage. Use a multimeter to measure the battery voltage. It should be in range of 3.7-4.2 V.
• Check if there are some startup errors. Connect the ESP32 to the computer and check the Serial Monitor output. Use the Reset button to make sure you see the whole ESP32 output.
• Check the baudrate is correct. If you see garbage characters in the Serial Monitor, make sure the baudrate is set to 115200.
• Make sure correct IMU model is chosen. If using ICM-20948/MPU-6050 board, change MPU9250 to ICM20948/MPU6050 in the imu.ino file.
• Check if the CLI is working. Perform help command in Serial Monitor. You should see the list of available commands. You can also access the CLI using QGroundControl (Vehicle Setup ⇒ Analyze Tools ⇒ MAVLink Console).
• Configure QGroundControl correctly before connecting to the drone if you use it to control the drone. Go to the settings and enable Virtual Joystick. Auto-Center Throttle setting should be disabled.
• If QGroundControl doesn't connect, you might need to disable the firewall and/or VPN on your computer.
• Check the IMU is working. Perform imu command and check its output:
  • The status field should be OK.
  • The rate field should be about 1000 (Hz).
  • The accel and gyro fields should change as you move the drone.
• Calibrate the accelerometer. if is wasn't done before. Type ca command in Serial Monitor and follow the instructions.
• Check the attitude estimation. Connect to the drone using QGroundControl. Rotate the drone in different orientations and check if the attitude estimation shown in QGroundControl is correct.
• Check the IMU orientation is set correctly. If the attitude estimation is rotated, make sure rotateIMU function is defined correctly in imu.ino file.
• Check the motors type. Motors with exact 3.7V voltage are needed, not ranged working voltage (3.7V — 6V).
• Check the motors. Perform the following commands using Serial Monitor:
  • mfr — should rotate front right motor (counter-clockwise).
  • mfl — should rotate front left motor (clockwise).
  • mrl — should rotate rear left motor (counter-clockwise).
  • mrr — should rotate rear right motor (clockwise).

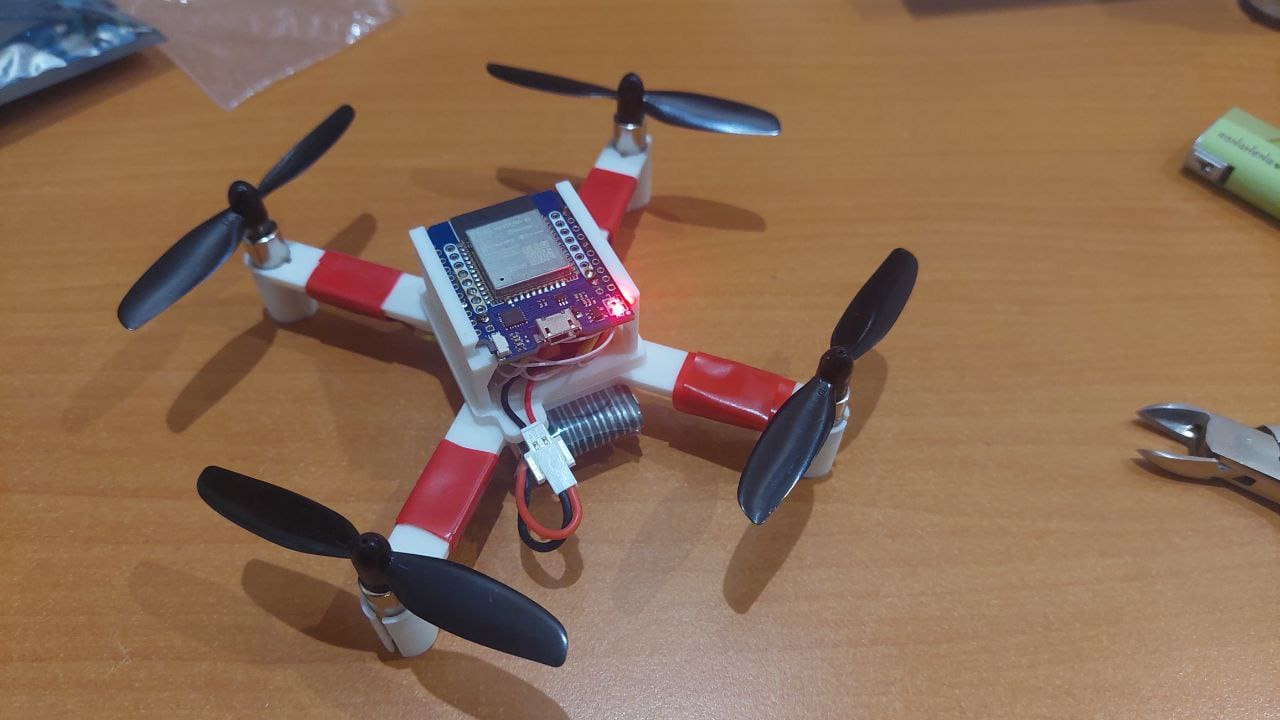

• Check the propeller directions are correct. Make sure your propeller types (A or B) are installed as on the picture:
• Check the remote control. Using rc command, check the control values reflect your sticks movement. All the controls should change between -1 and 1, and throttle between 0 and 1.
• If using SBUS receiver, calibrate the RC. Type cr command in Serial Monitor and follow the instructions.
• Check the IMU output using QGroundControl. Connect to the drone using QGroundControl on your computer. Go to the Analyze tab, MAVLINK Inspector. Plot the data from the SCALED_IMU message. The gyroscope and accelerometer data should change according to the drone movement.
