Hall of fame
This page contains user-built drones based on the Flix project. Publish your projects into the official Telegram-chat: @opensourcequadcopterchat or send materials as a pull request.
RoboCamp 2026
The second Flix RoboCamp event took place in July 2026 in Saint Petersburg. The main goal for the competitors was to build a Flix-based quadcopter and implement autonomous position control using distance sensors and an overhead camera. Several participants were able to implement altitude hold, and two participants implemented stable position hold.
Highlights
The winning project performed an automatic takeoff, stable position hold (2 min+), and navigation to a point selected by the user by clicking on the camera image.
See the demonstration video:
Author: Oleg1405.

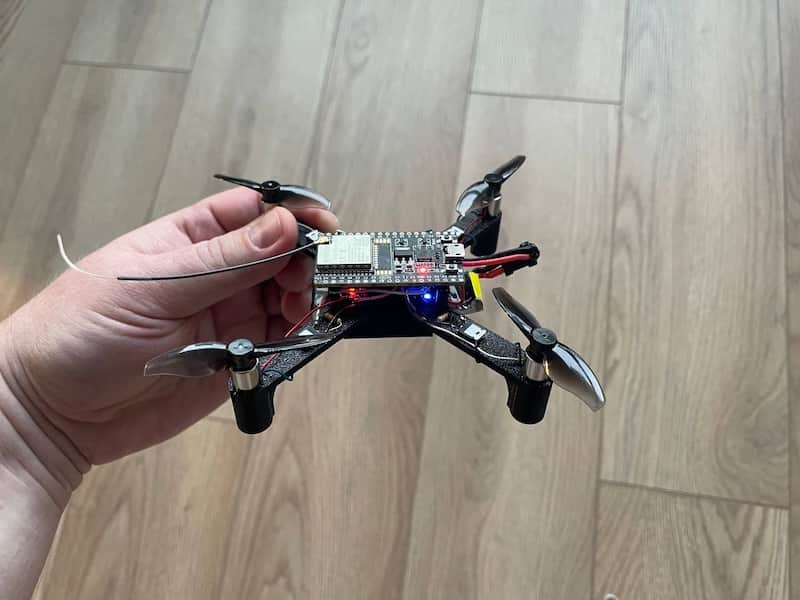

Description: ESP32 Mini, MPU-6500 IMU, boost converter, BT2.0 power connector, 65 mm props, BetaFPV ELRS Lite Receiver, Radiomaster Pocket + Mavlink Joystick (Android) control.

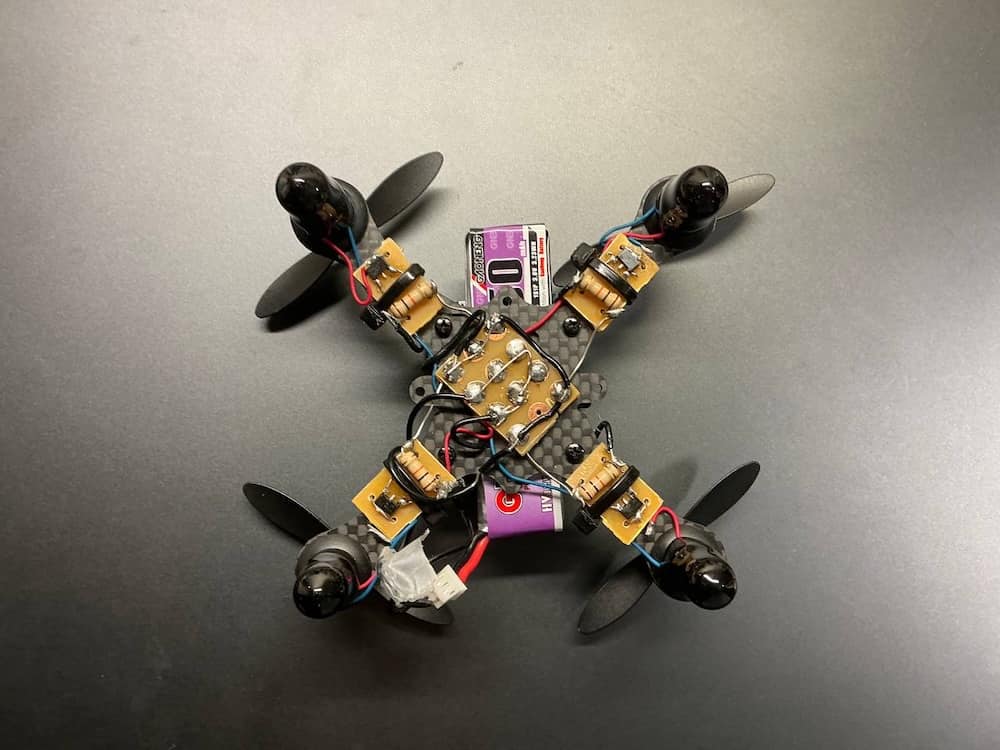

Author: Alican Erüst.

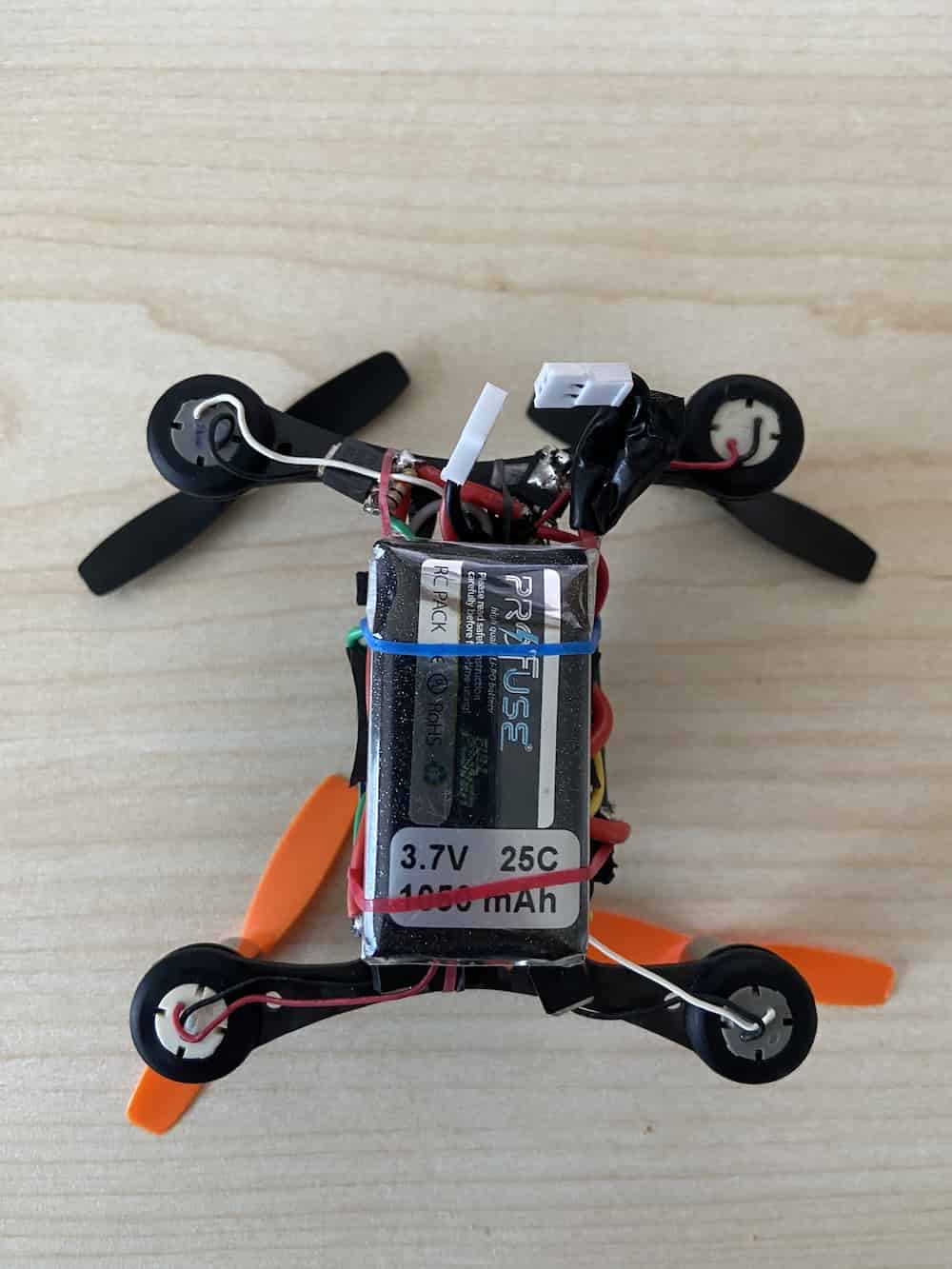

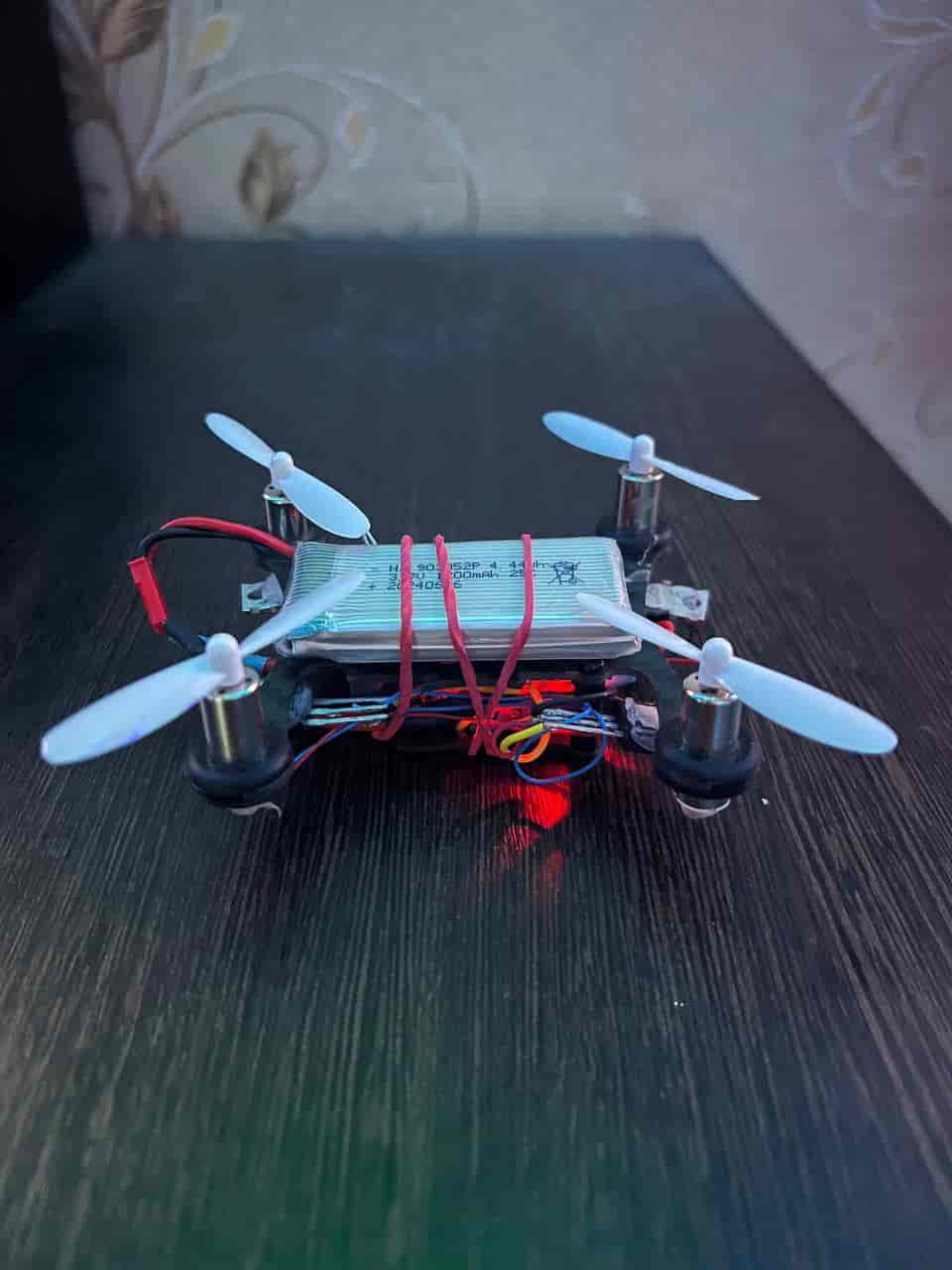

Description: QX95 mm frame, 55 mm propellers, 3.7 V 25C 1050 mAh LiPo battery, MPU6050 IMU, Logitech F310 gamepad controller, with a total quadcopter weight of 66 g.

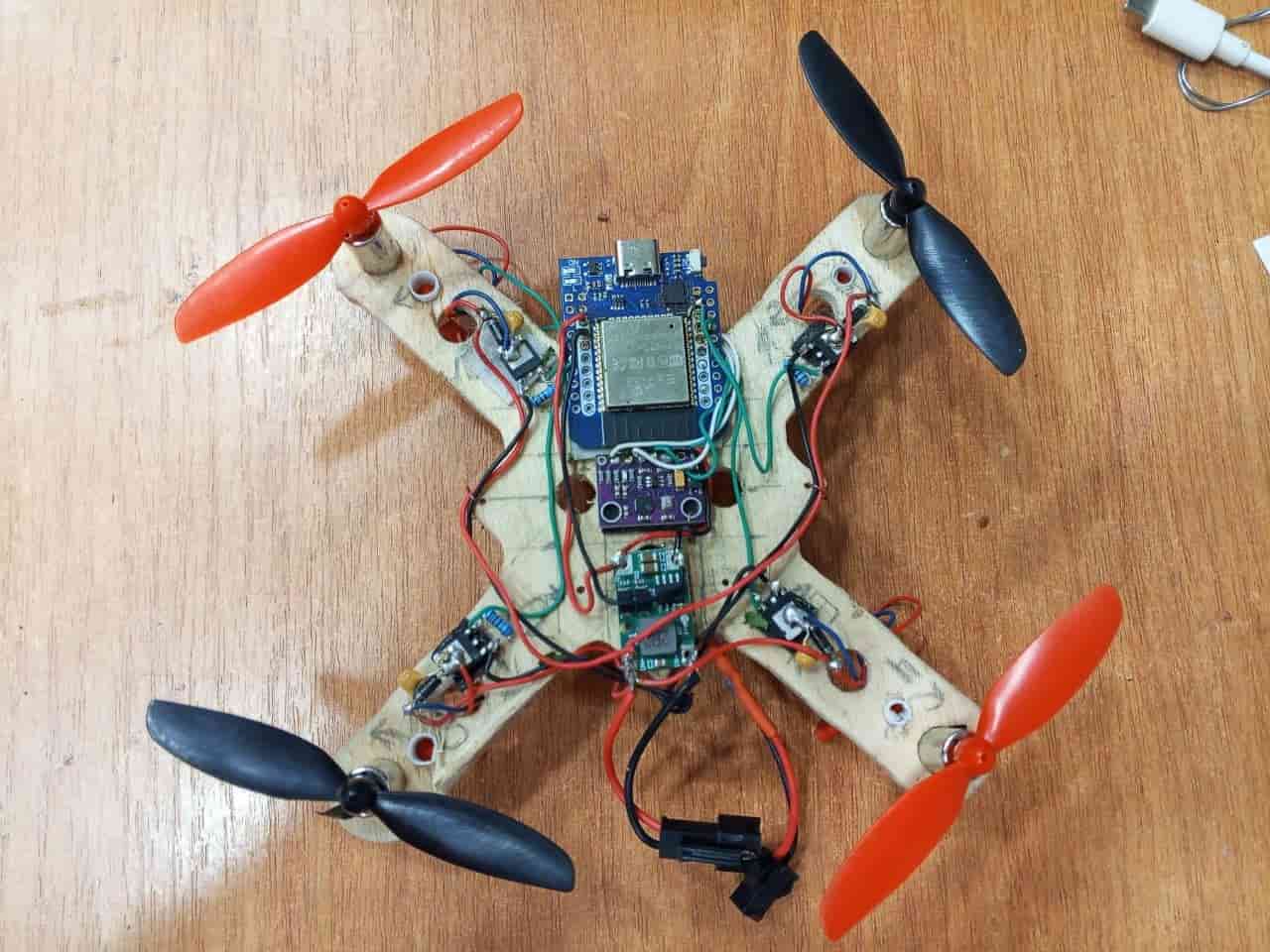

Author: Неруш Михаил.

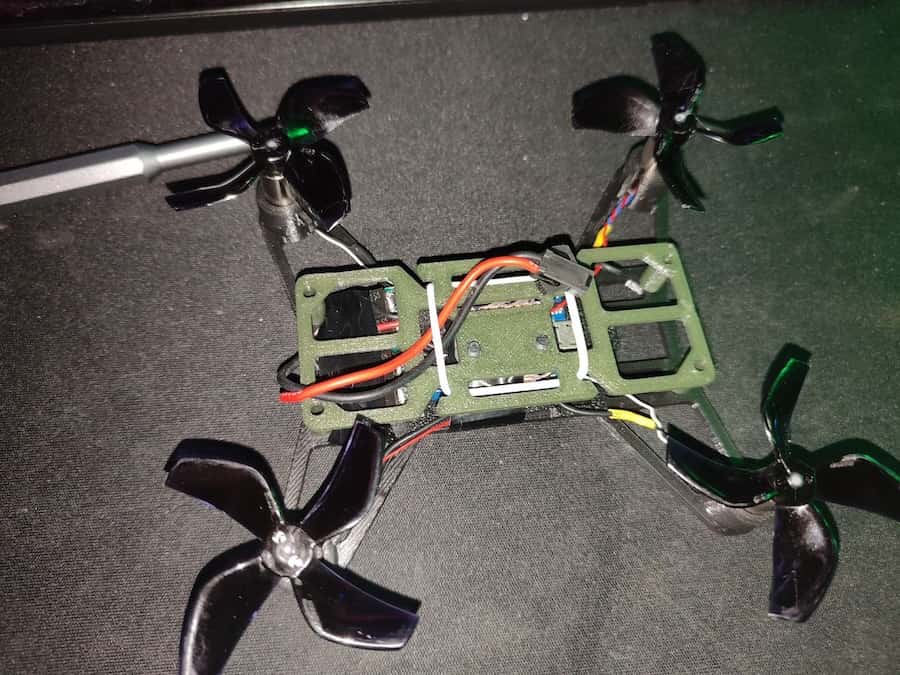

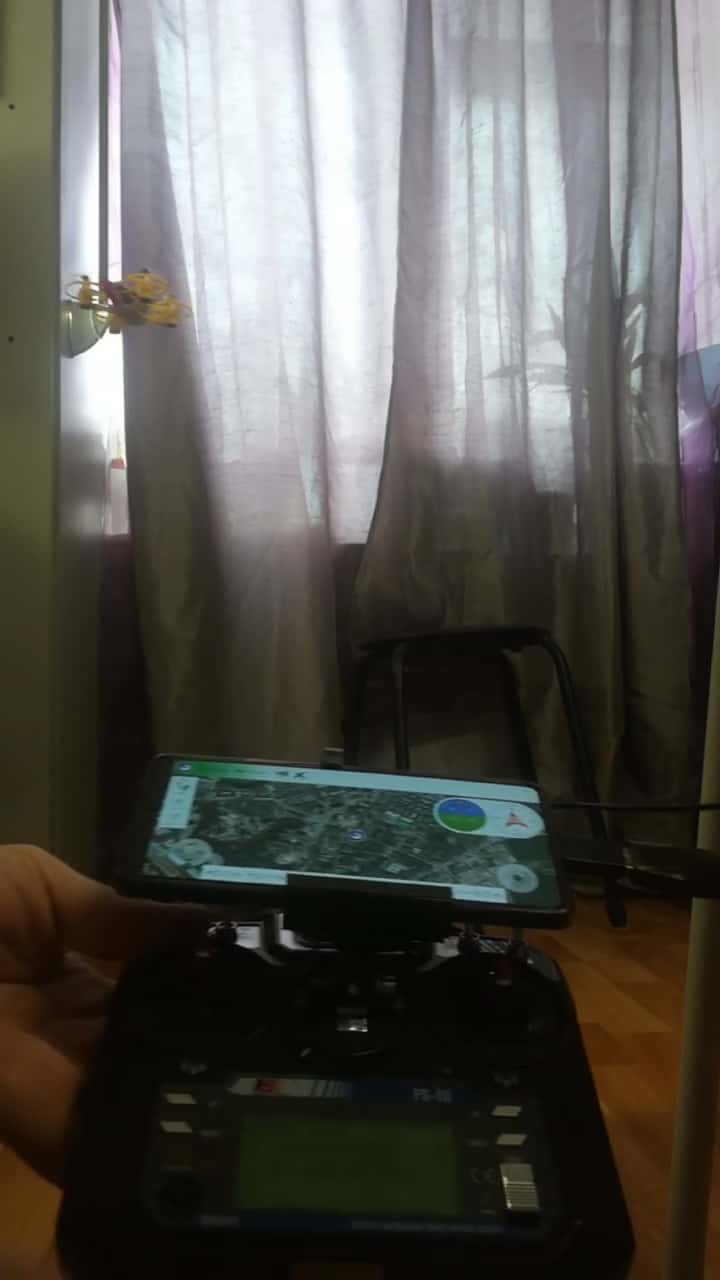

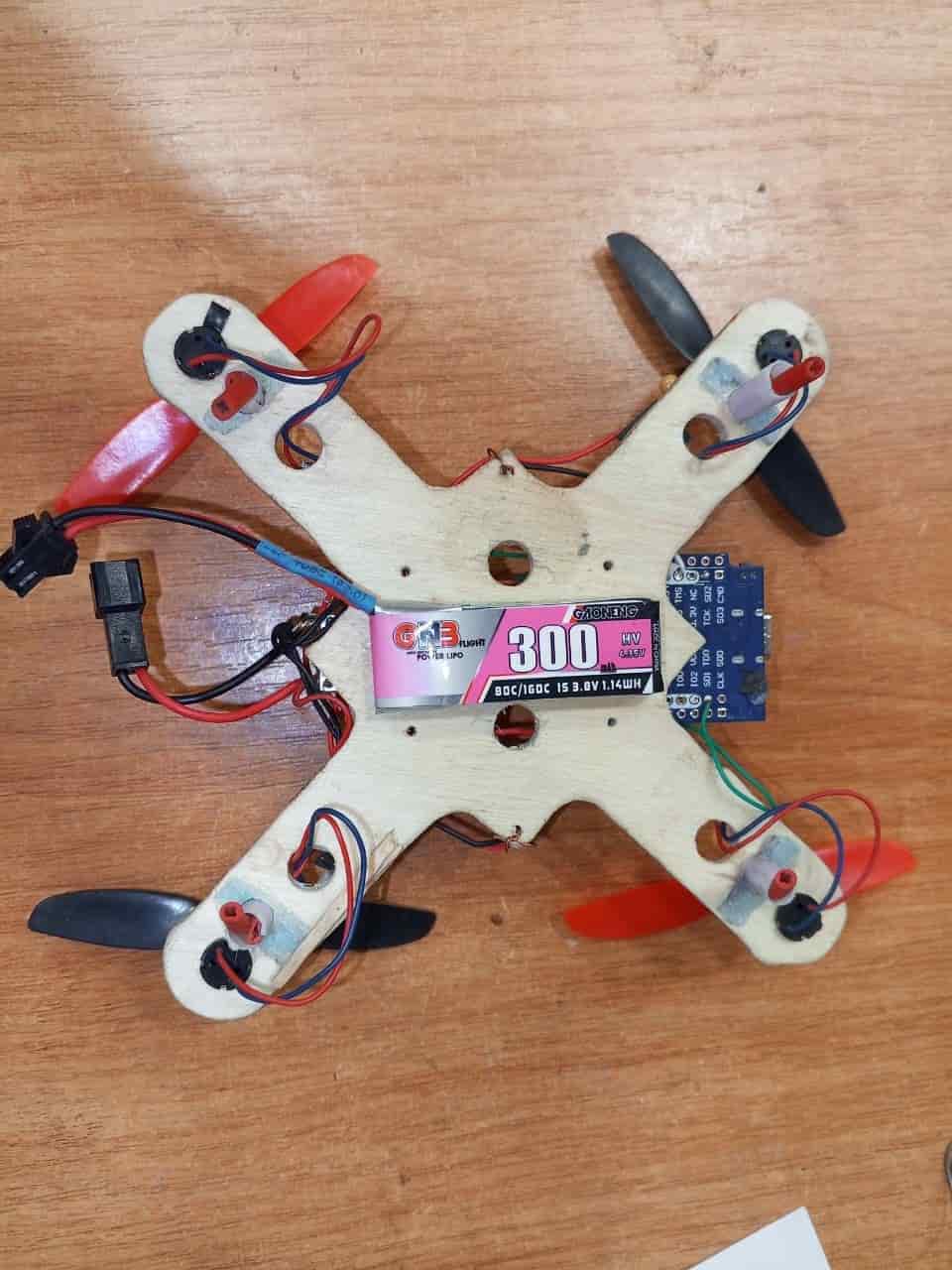

Description: custom frame made of 4 mm plywood, 8520 brushed motors, 75 mm propellers, MPU-6500. FlySky FS-i6X with ESP32-based adapter for ESP-NOW communication (using PPM output).
Sources and materials: link.
Author: Konstantinos Paraskevas.
Description: drone with a custom single-boarded airframe, extending the Sprig-C3 module.
ESP32-C3 microcontroller, ICM-20948 IMU, on-board fuel-gauge, status LED indicator.
Repository with all the code and PCB sources: https://github.com/Frapais/Sprig-Drone.
Detailed video about making the drone:

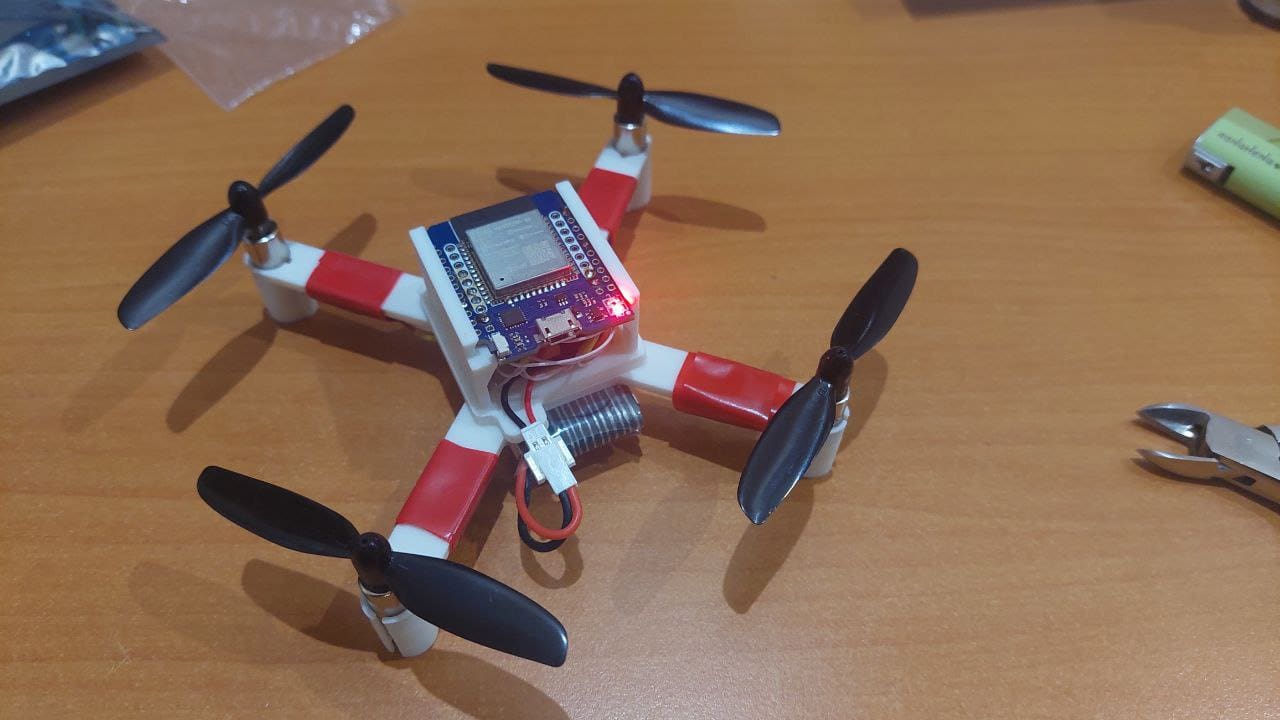

Author: Awab Anas.

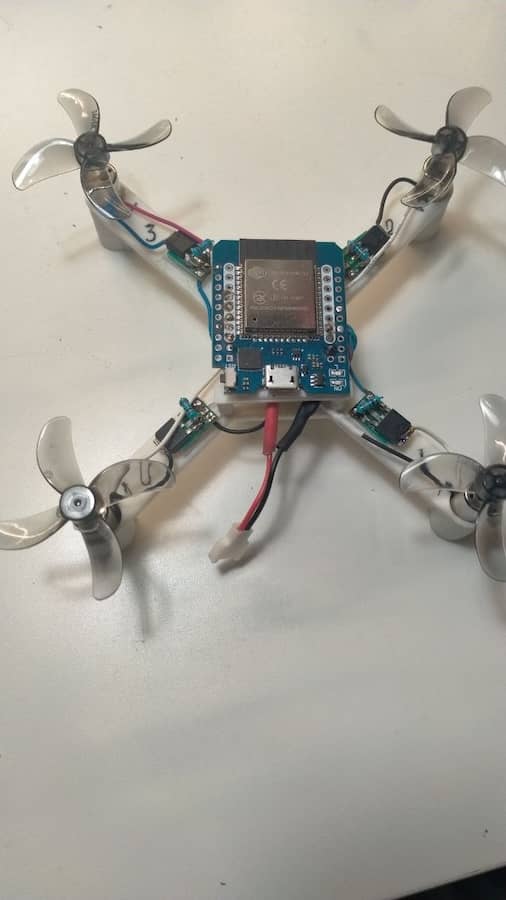

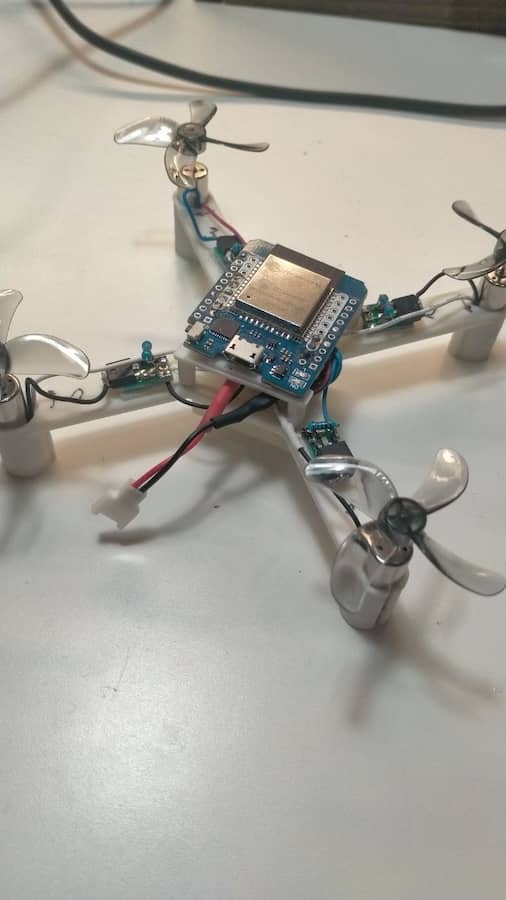

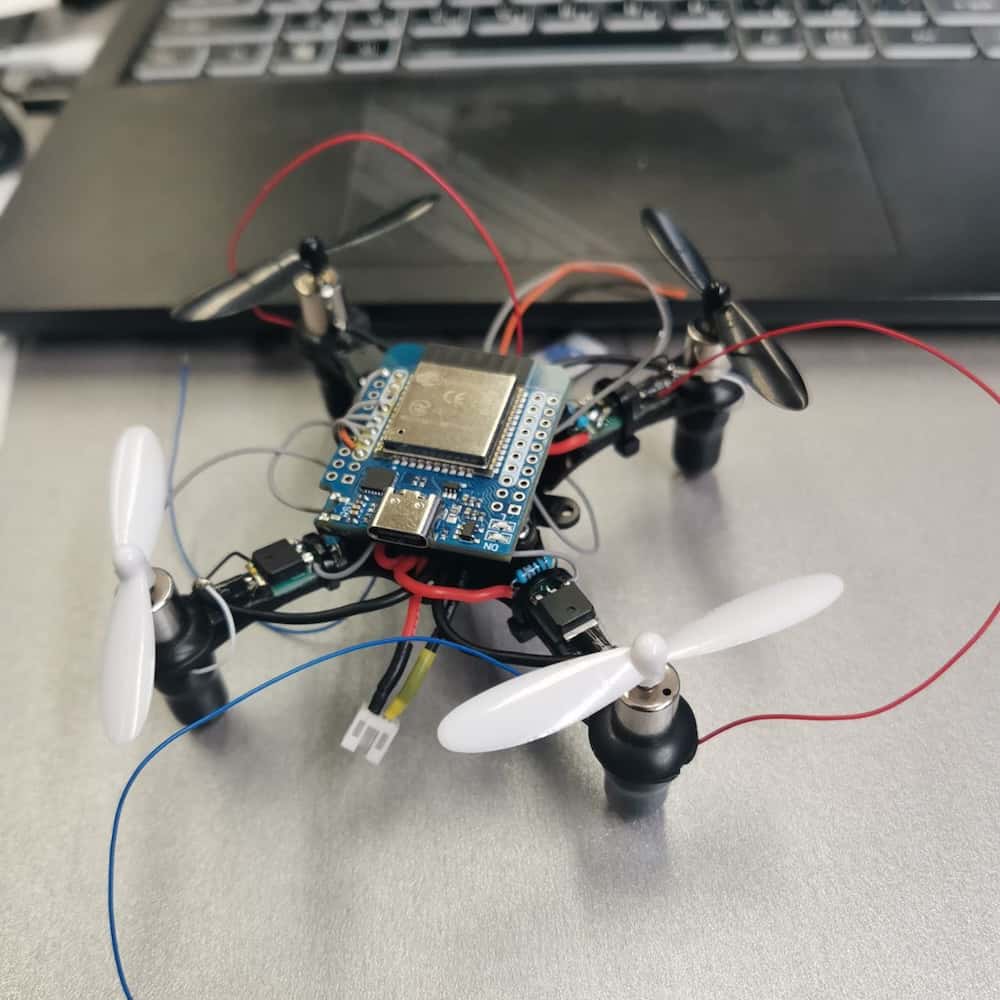

Description: ESP32 D1 Mini, MPU-6050, 8520 3.7V brushed motors, 55 mm propellers, battery li-po 1200 mAh, controlling via Mavlink Joystick app.
Flight validation.
Author: Ina Tix.
Description: XR2981 based DC-DC converter, ELRS MINI 2.4GHz RX SX1280 receiver (SBUS interface), Radiomaster TX12 remote control.
Flight validation.
Author: Oleg Kalachev.

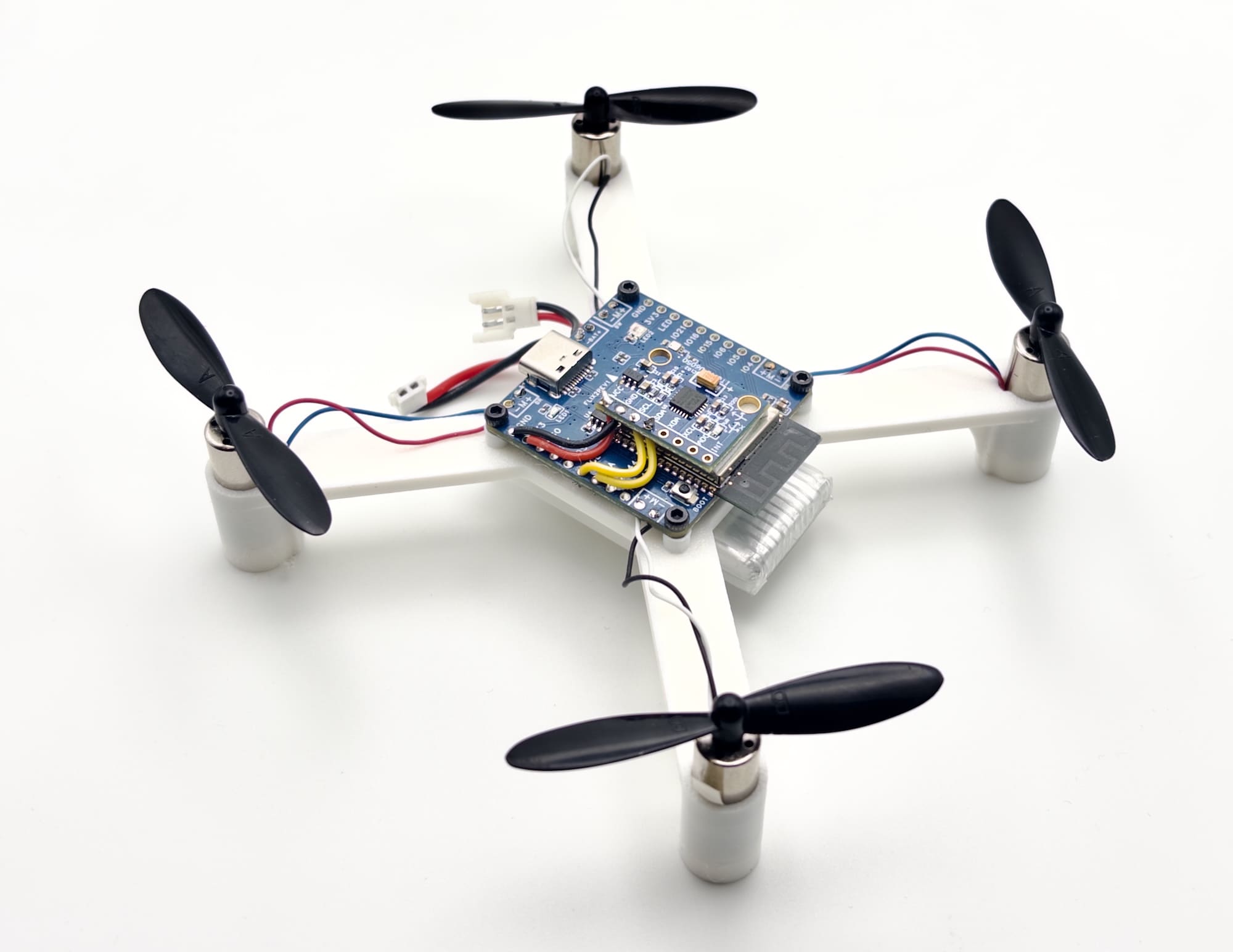

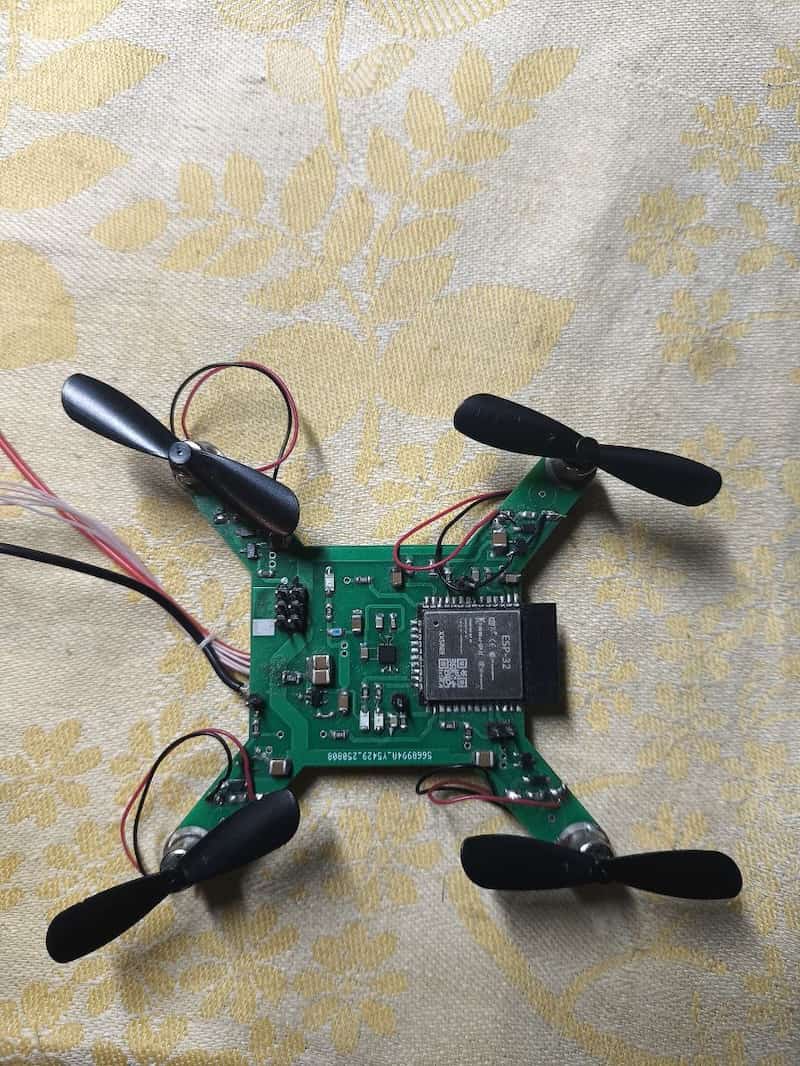

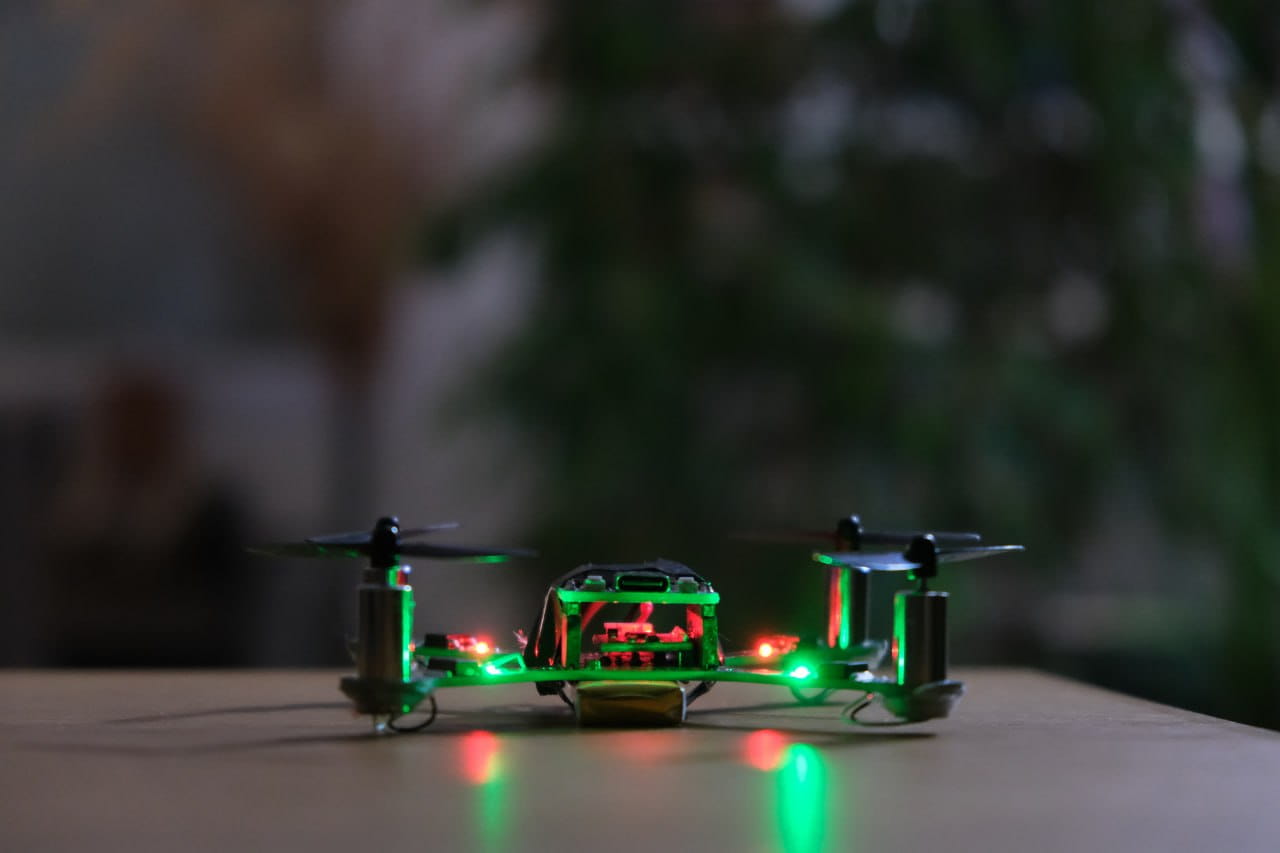

Description: the first attempt on making an official PCB based Flix drone (Flix2 board). The IMU is not working on this version, so an external MPU-6050 board was used, therefore considered as Flix version 1.5.
Flight video.

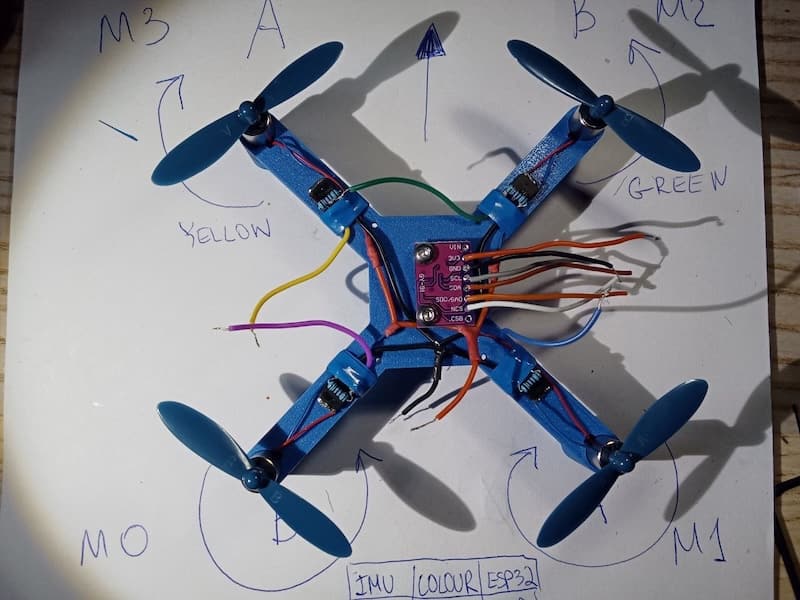

Author: FanBy0ru.

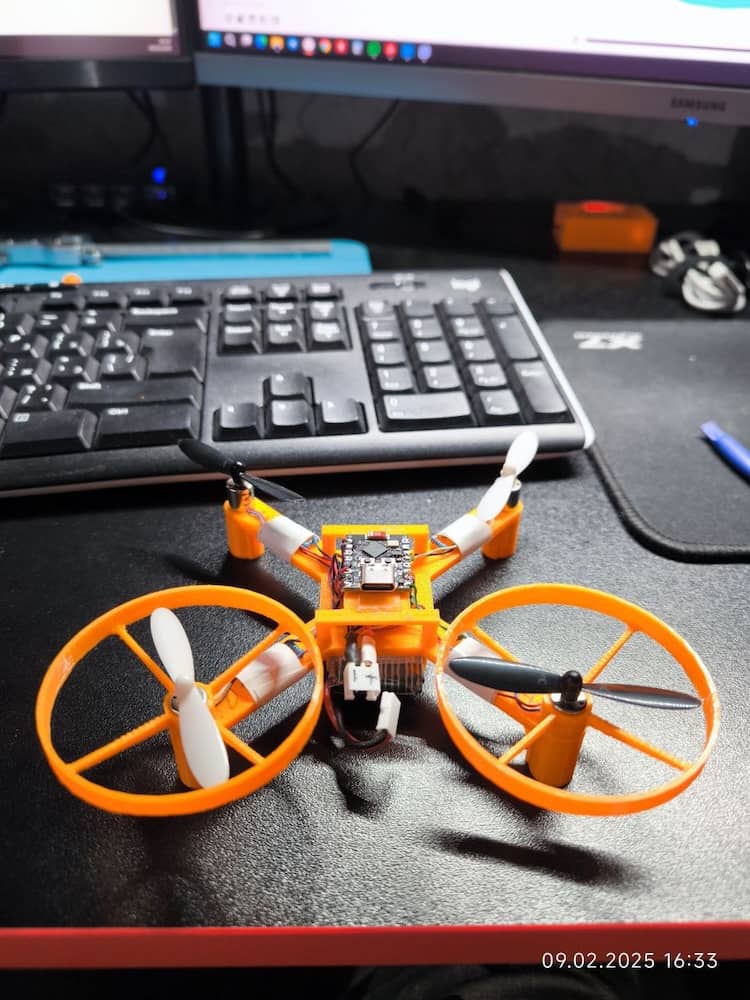

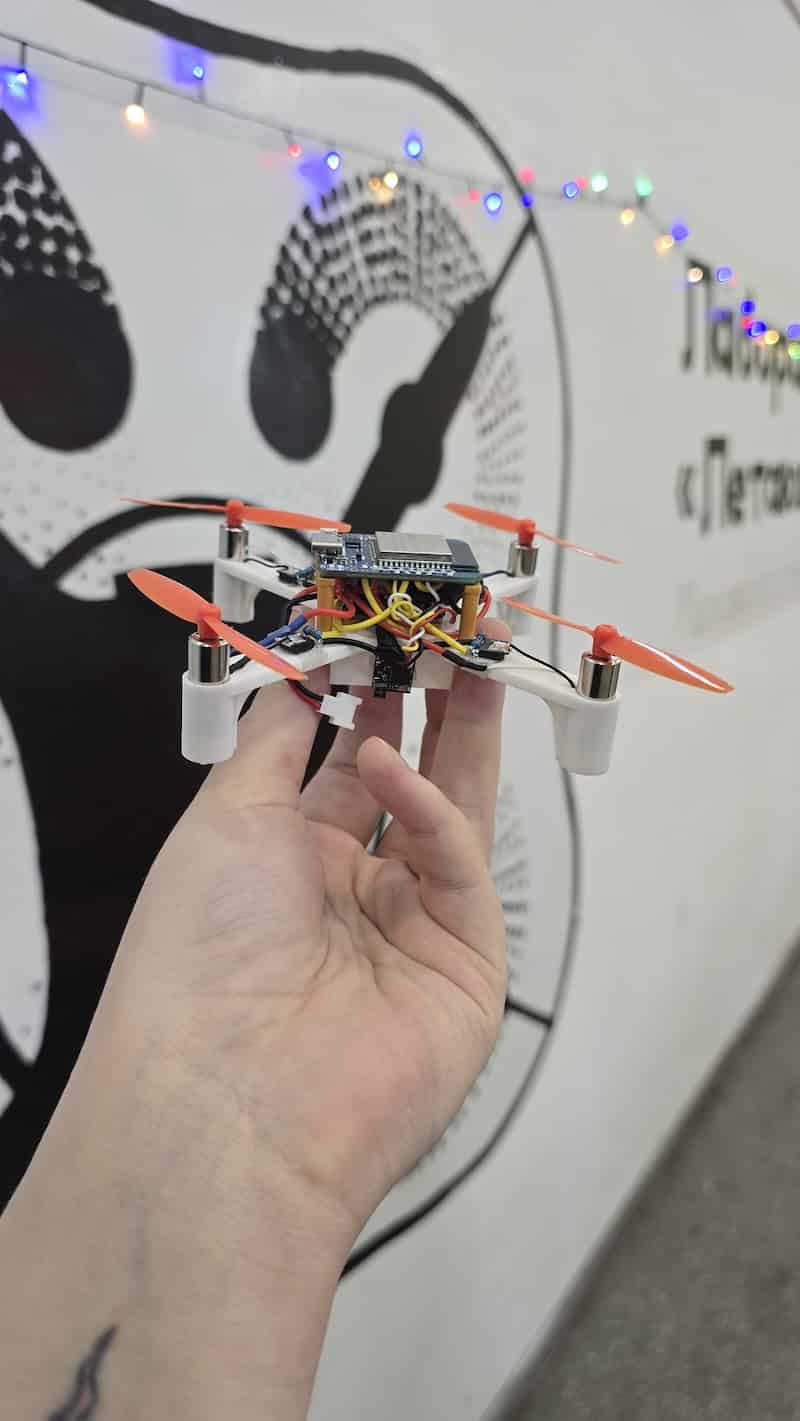

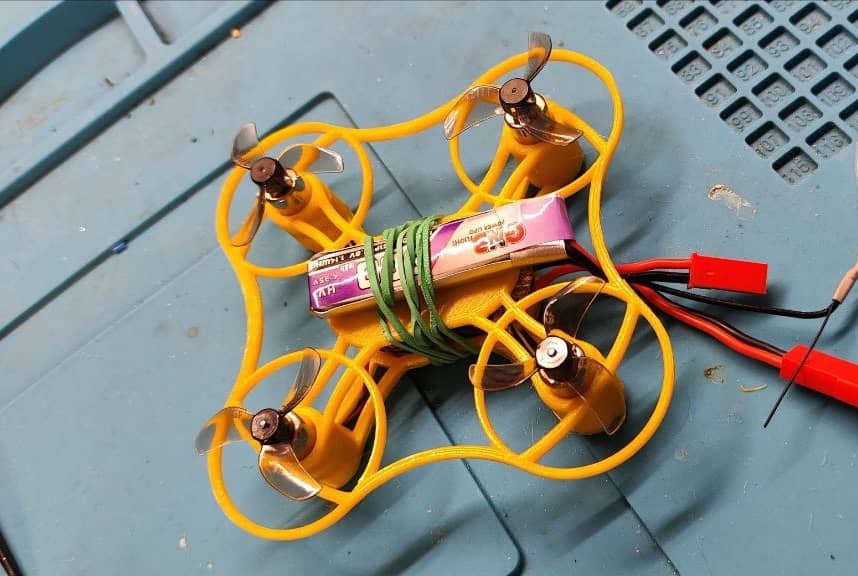

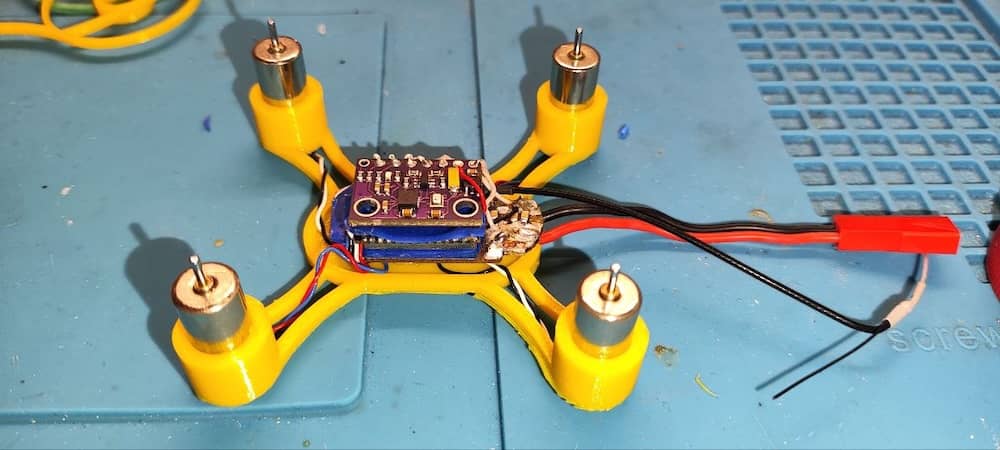

Description: custom 3D-printed frame.
Frame STLs and flight validation: https://cults3d.com/en/3d-model/gadget/armature-pour-flix-drone.

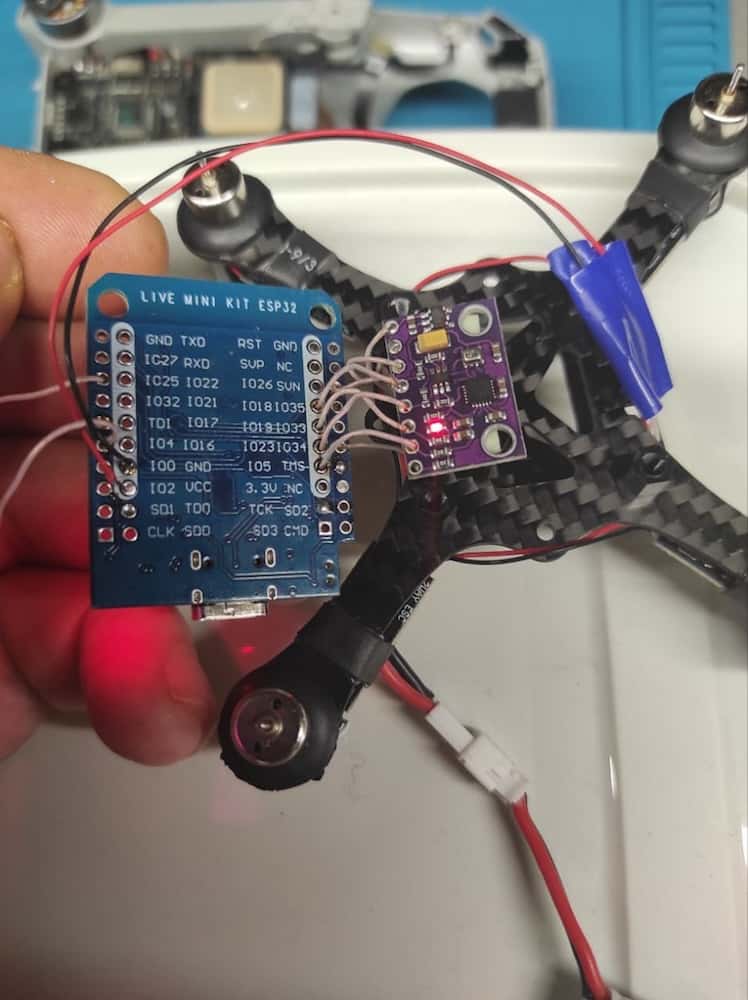

Author: Ivan44 Phalko.

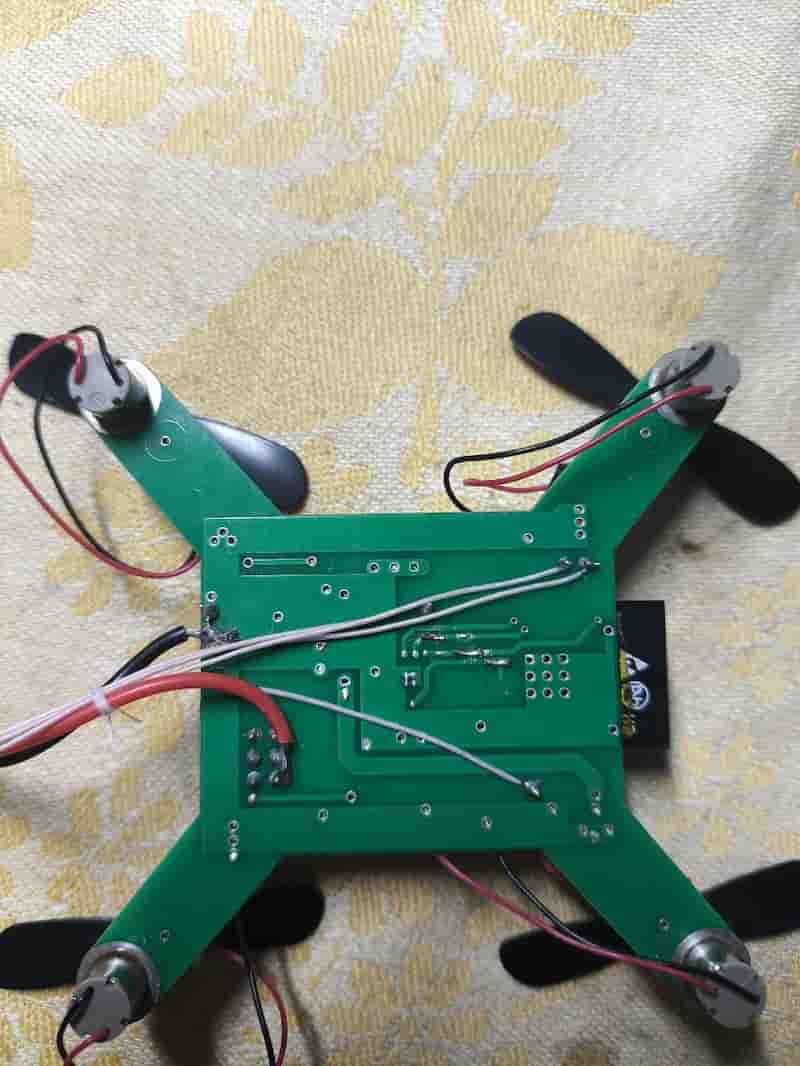

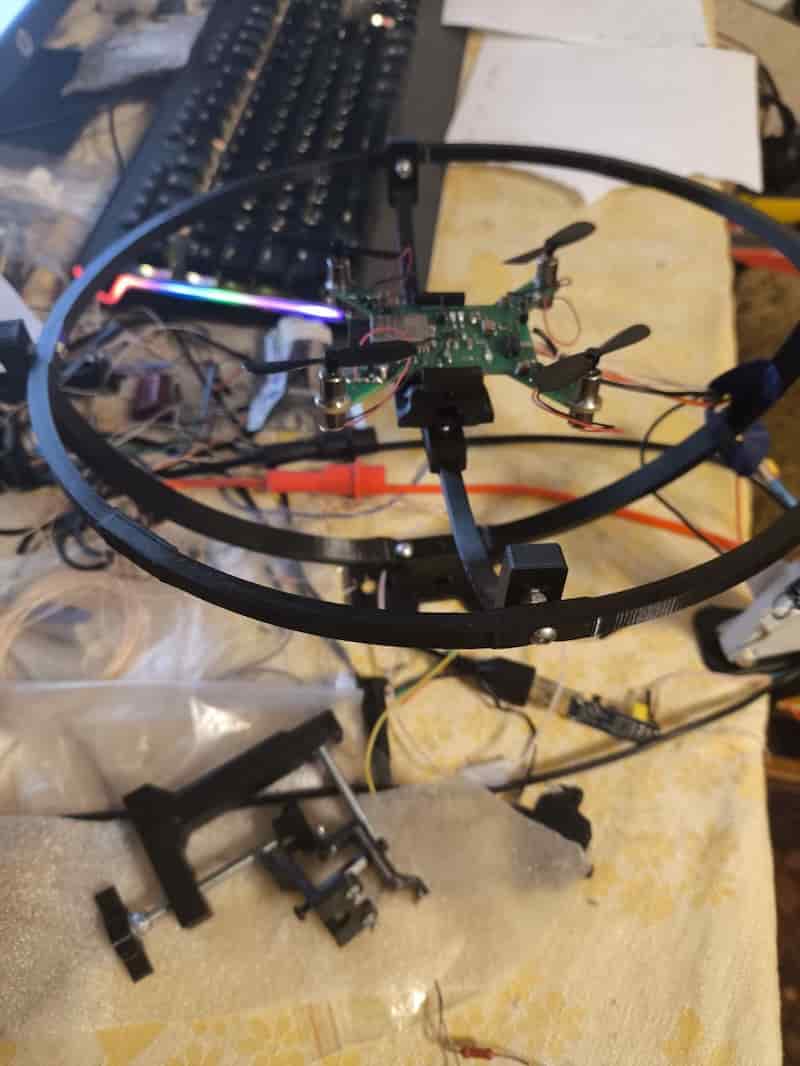

Description: custom PCB, cusom test bench.
Flight validation.
Author: Arkadiy "Arky" Matsekh, Foucault Dynamics, Gold Coast, Australia.
The drone was built for the University of Queensland industry-led Master's capstone project.
Flight video:
Author: goldarte.
Flight video:

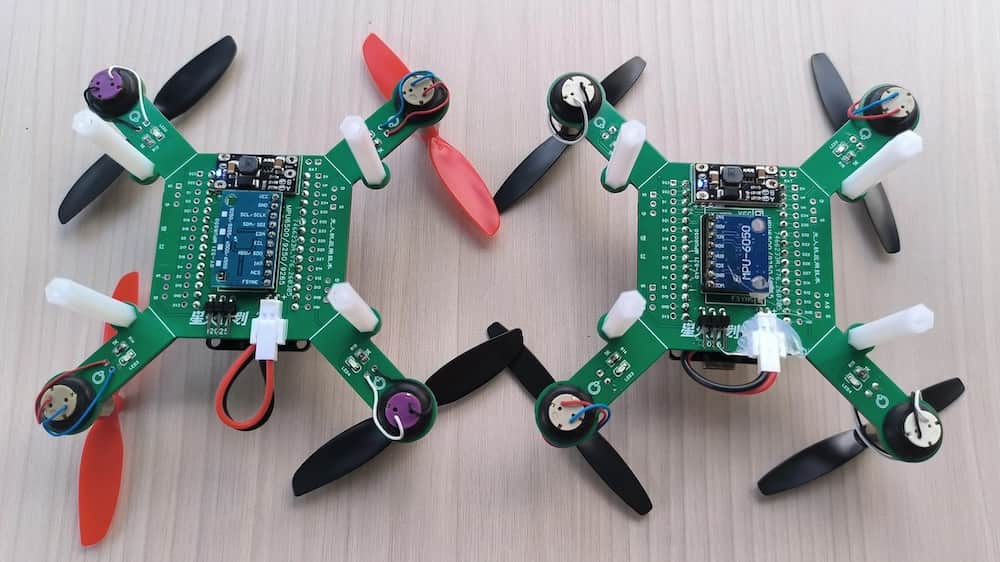

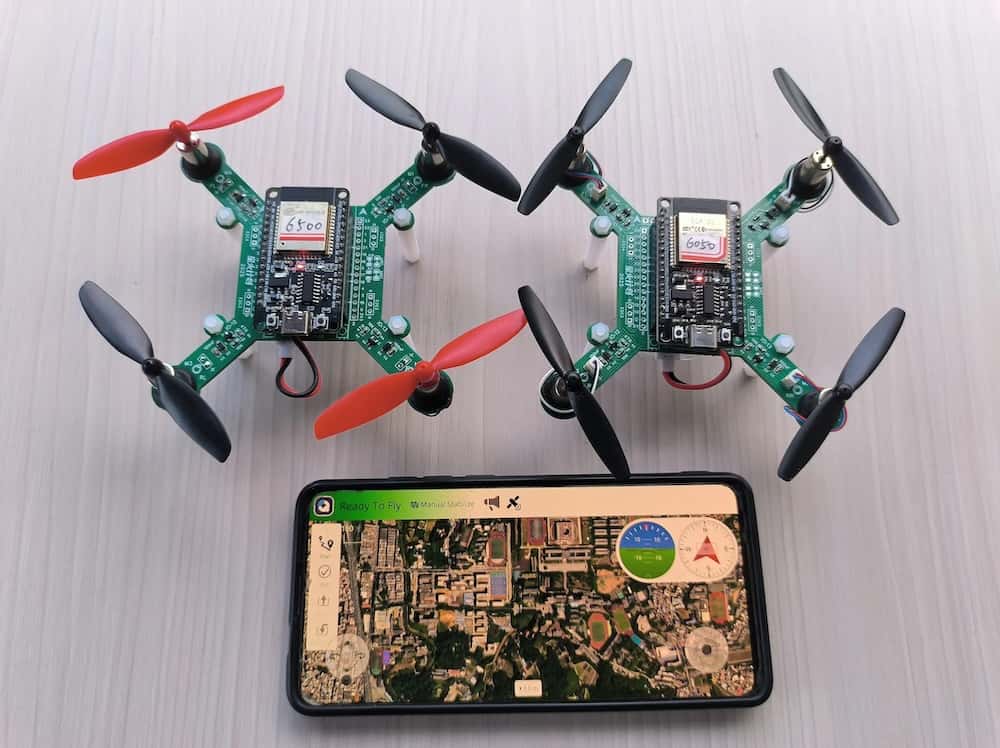

Author: malagis.
A Chinese custom PCB version of Flix with a big community of users, lots of materials and modifications.
Main project's page: https://oshwhub.com/malagis/esp32-mini-plane.
Video about the project: https://www.bilibili.com/video/BV14vyqBFEJn/.
School 548 course

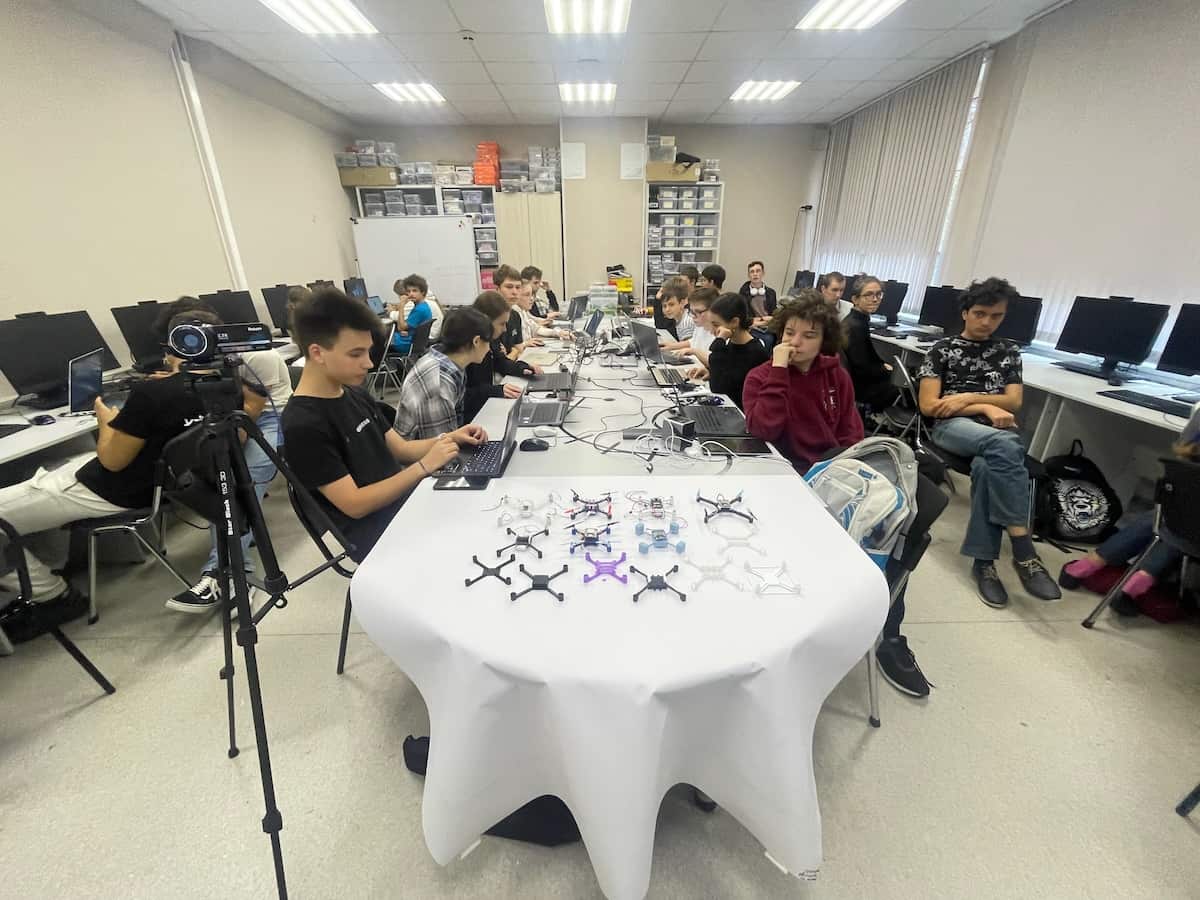

Special course on quadcopter design and engineering took place in october-november 2025 in School 548, Moscow. The course included UAV control theory, electronics, drone assembly and setup practice, using the Flix project.
STL files and other materials: see here.
Selected works

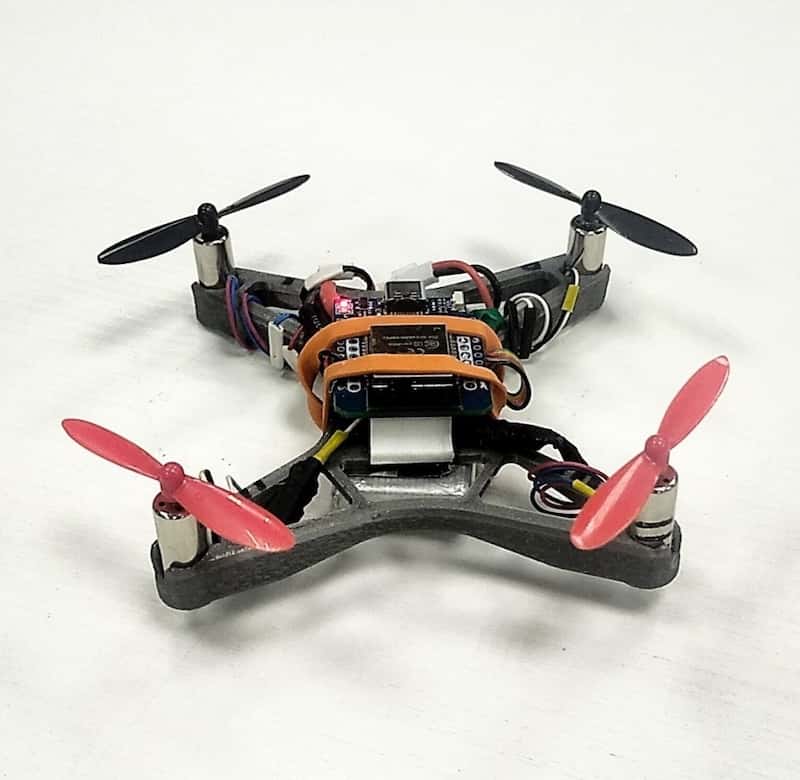

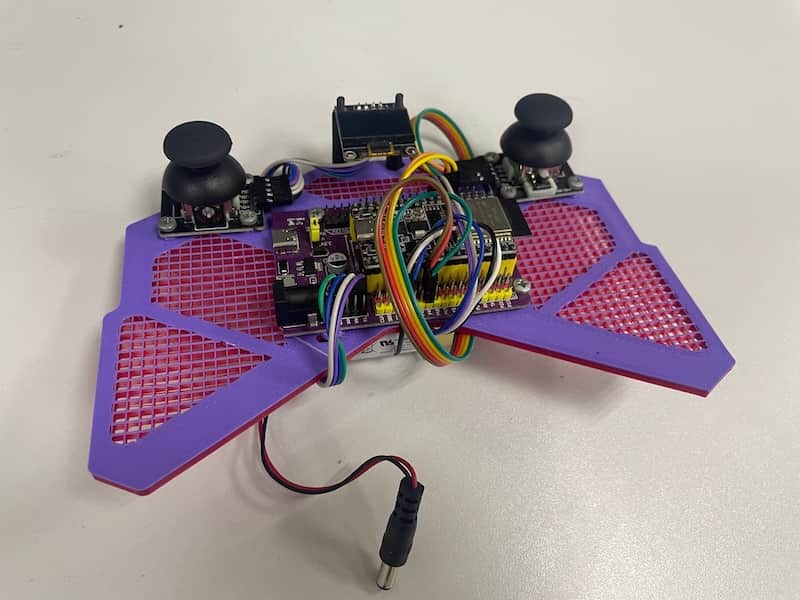

Author: KiraFlux.
Description: custom ESPNOW remote control was implemented, modified firmware to support ESPNOW protocol.
Telegram posts: 1, 2.
Modified Flix firmware: https://github.com/KiraFlux/flix/tree/klyax.
Remote control project: https://github.com/KiraFlux/ESP32-DJC.
Drone design: https://github.com/KiraFlux/Klyax.
ESPNOW remote control demonstration:

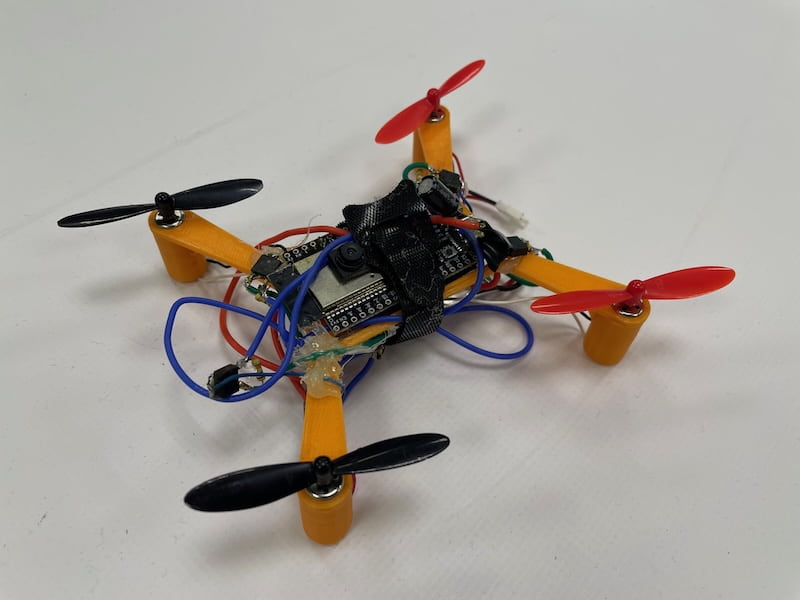

Author: tolyan4krut.
Description: the first drone based on ESP32-S3-CAM board with a camera, implementing Wi-Fi video streaming. Runs HTTP server and HTTP video stream.
Modified Flix firmware: https://github.com/CatRey/Flix-Camera-Streaming.
Telegram post.
Video streaming and flight demonstration:

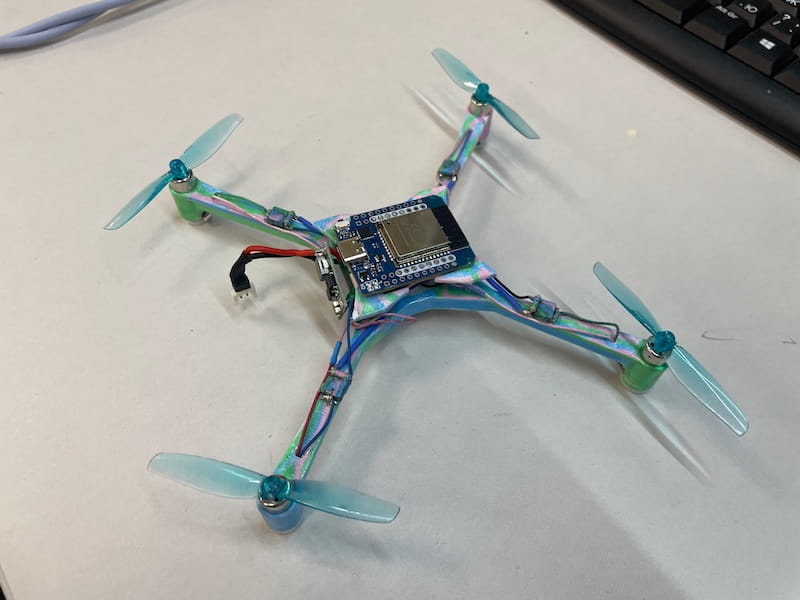

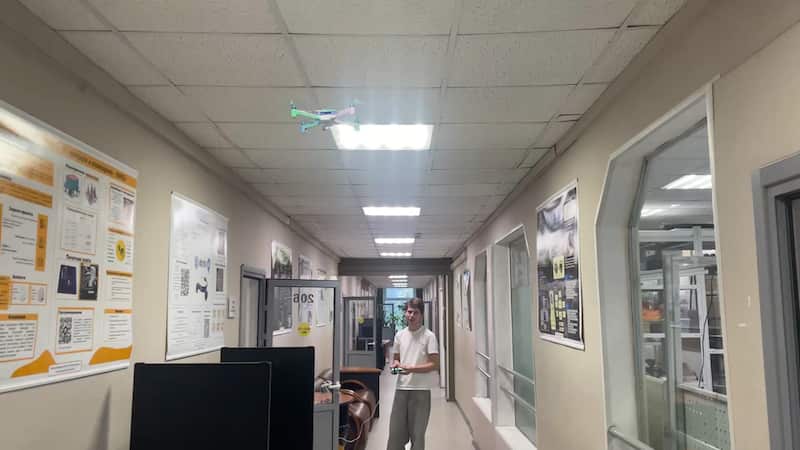

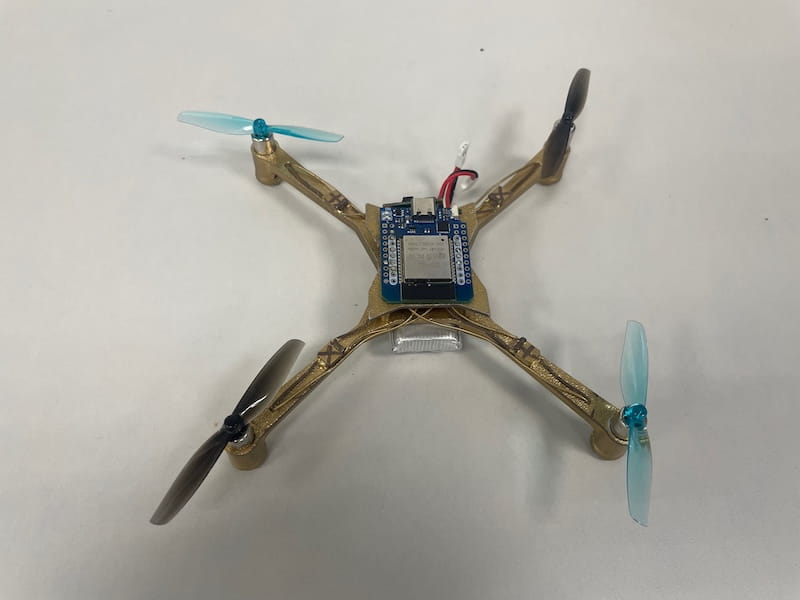

Author: Vlad Tolshinov.

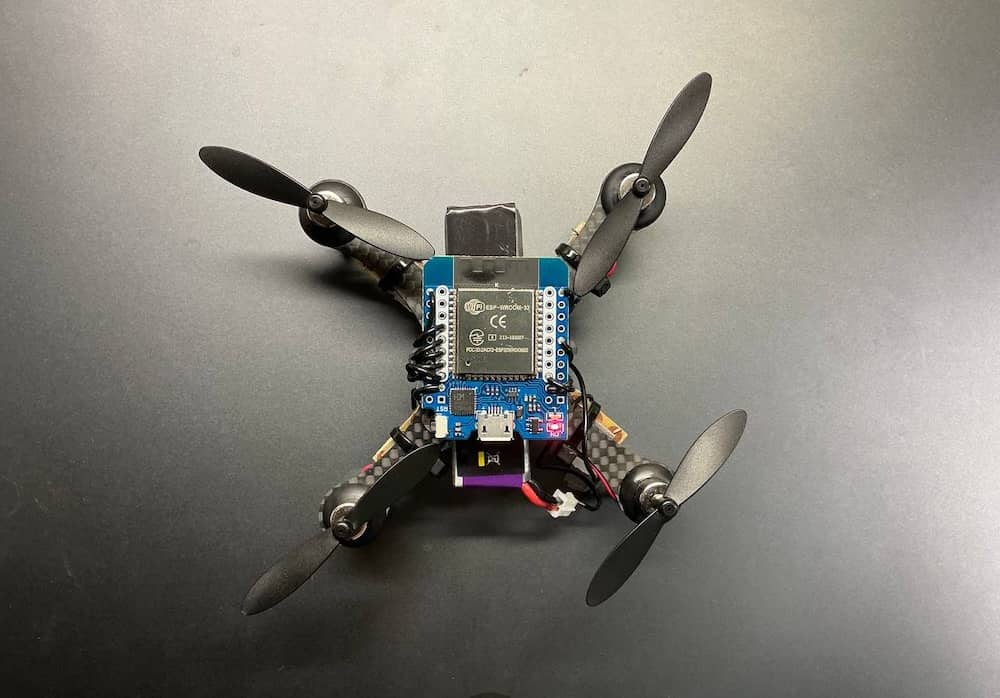

Description: custom frame with enlarged arm length, which provides very high flight stability, 65 mm props.
Flight video:

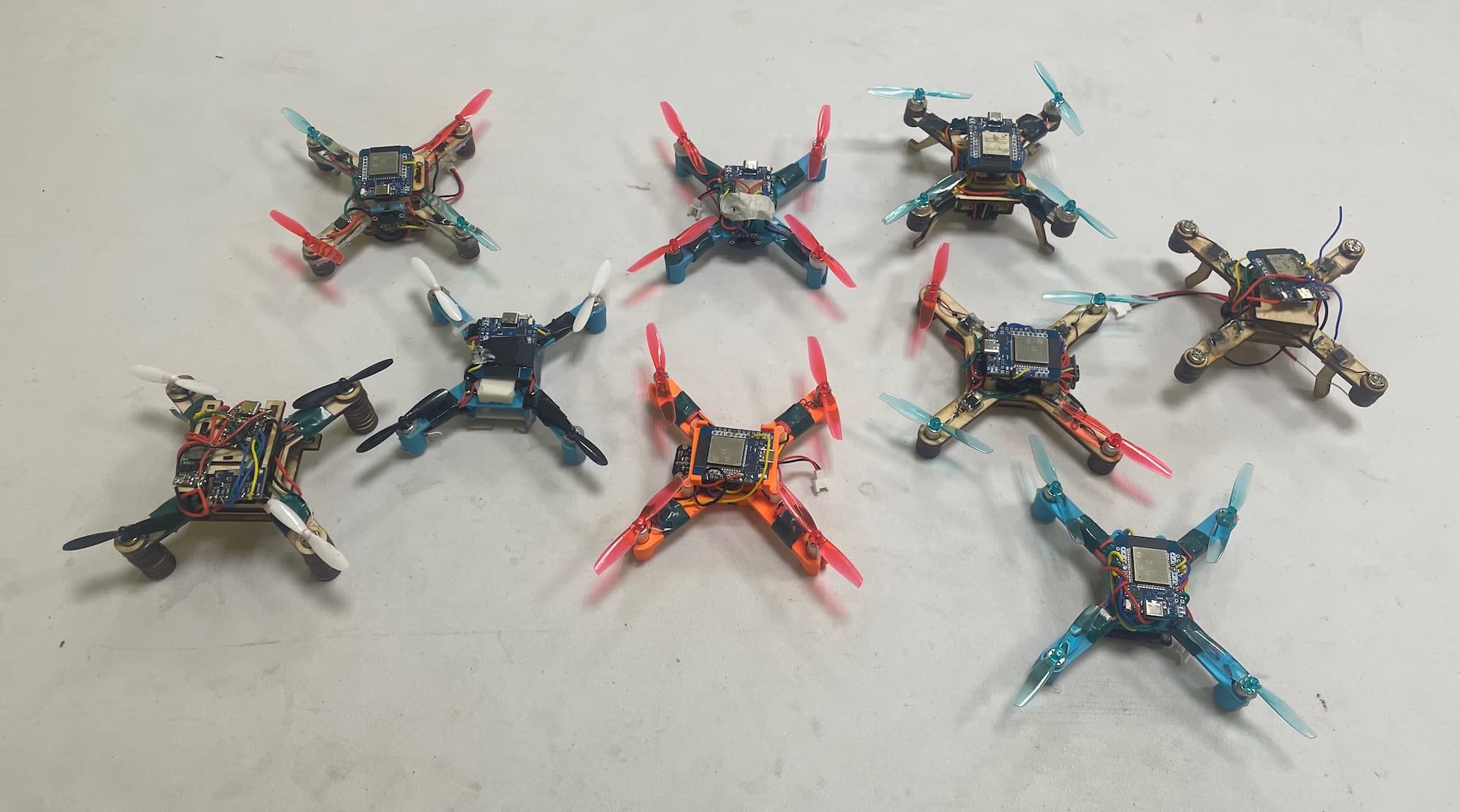

RoboCamp
Author: RoboCamp participants.

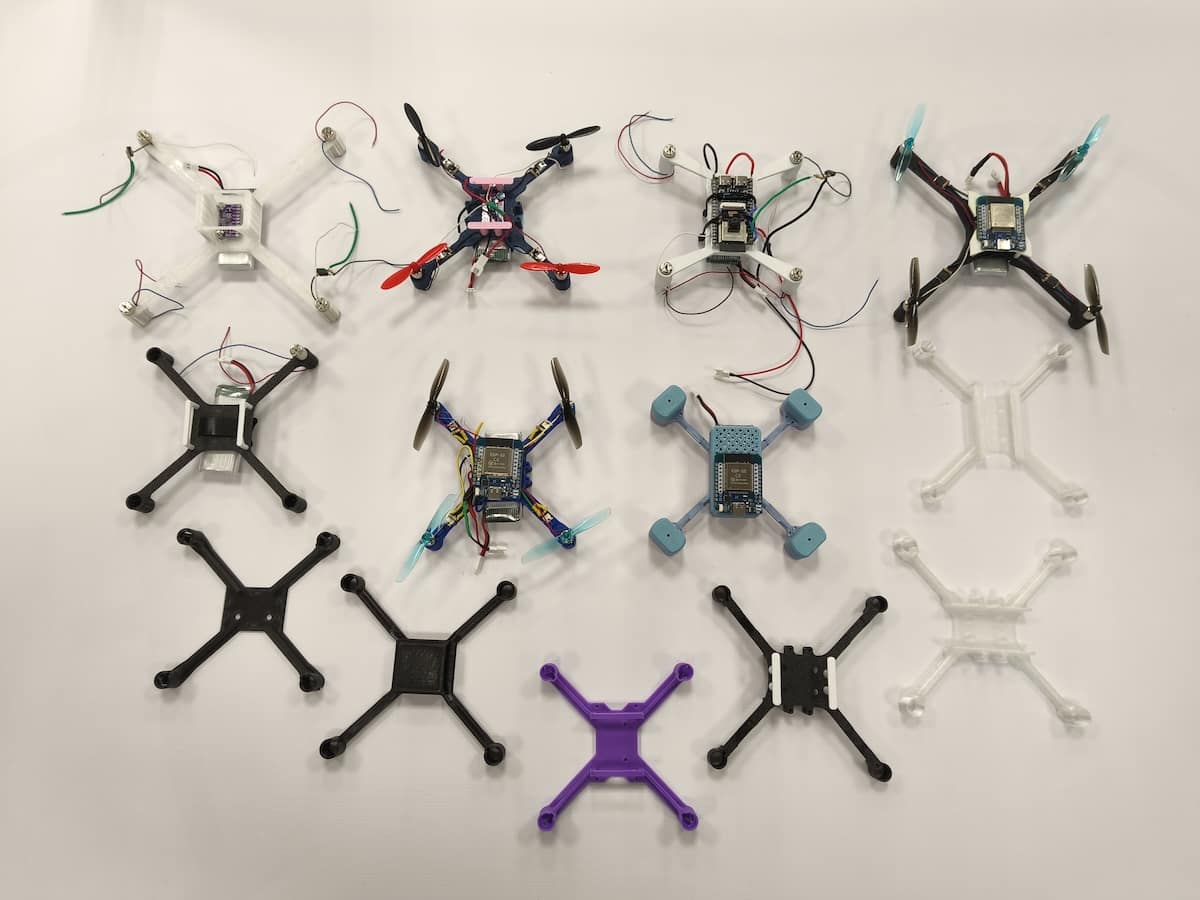

Description: 3D-printed and wooden frames, ESP32 Mini, DC-DC buck-boost converters. BetaFPV LiteRadio 3 to control the drones via Wi-Fi connection.
Features: altitude hold, obstacle avoidance, autonomous flight elements.
Some of the designed model files: see here.
RoboCamp took place in July 2025, Saint Petersburg, where 9 participants designed and built their own drones using the Flix project, and then modified the firmware to complete specific flight tasks.
See the detailed video about the event:
Built drones:

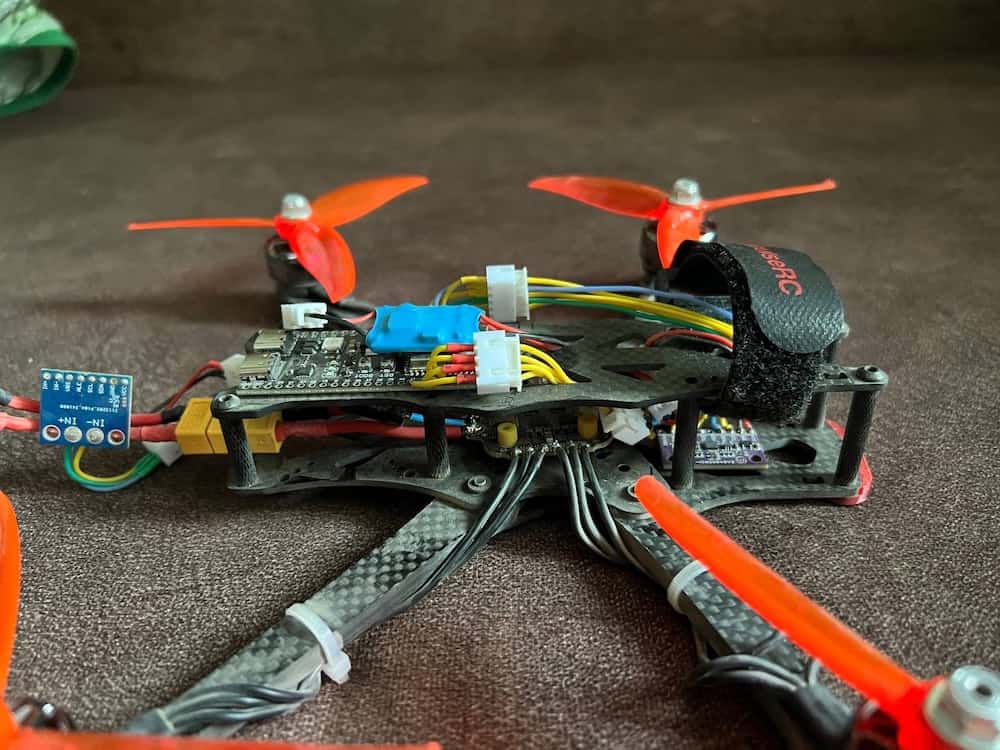

Author: chkroko.

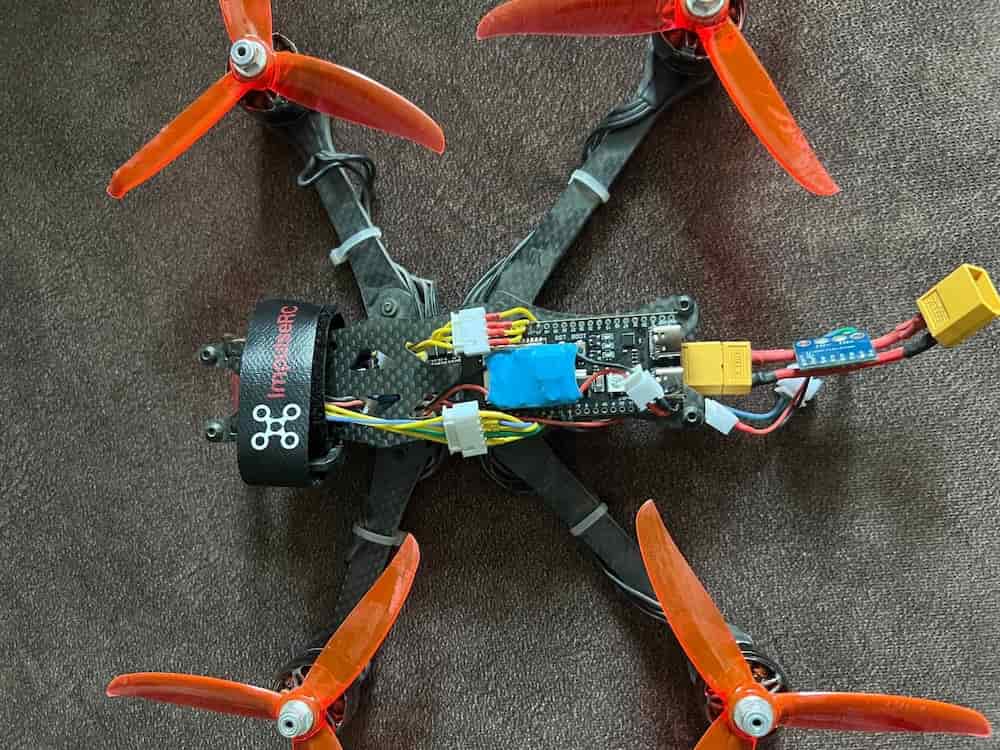

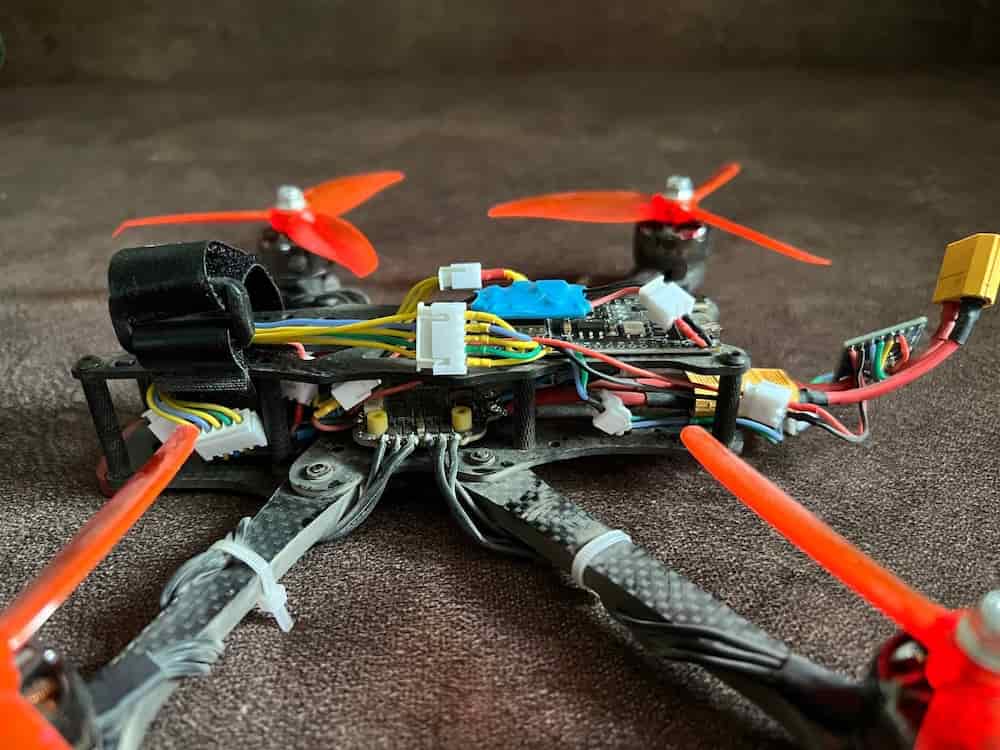

Description: the first Flix drone built with brushless motors (DShot interface).
Features: SpeedyBee BLS 35A Mini V2 ESC, ESP32-S3 board, EMAX ECO 2 2207 1700kv motors, ICM20948V2 IMU, INA226 power monitor and Bluetooth gamepad for control.
Patch for DShot ESC: https://github.com/Krokodilushka/flix/commit/568345a45ca7ed5b458a11a9d0a9f4c8a91e70ac.
Flight video:
Author: chkroko.
Modification: Control using Bluetooth with Flydigi Vader 3 gamepad. Source code: https://github.com/Krokodilushka/flix/tree/dev.
Features: ESP32-C3 SuperMini, BMP580 barometer, INA226 power monitor, IRLZ44N MOSFETs.
Full description: https://telegra.ph/Flix-dron-06-13.
Flight video:
Author: chkroko.

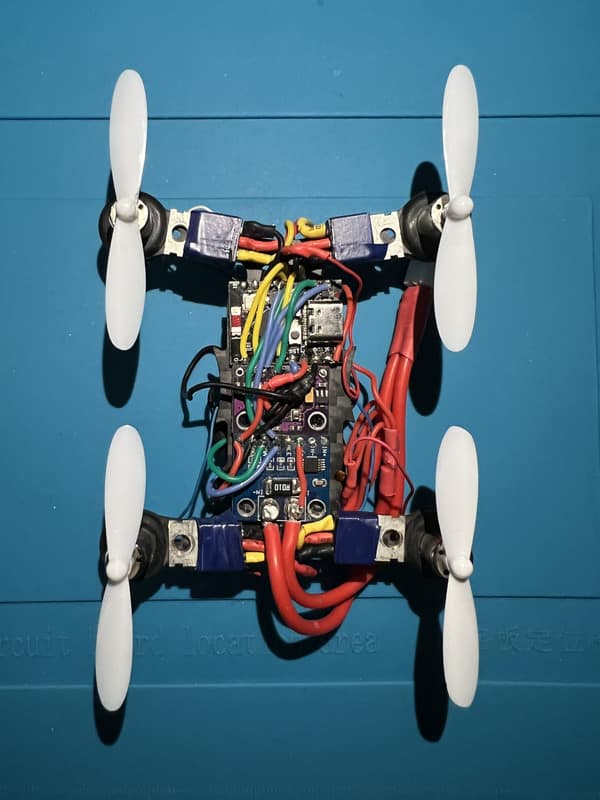

Features: ESP32-C3 SuperMini board, INA226 power monitor, IRLZ44N MOSFETs, MPU-6500 IMU.
Flight video:

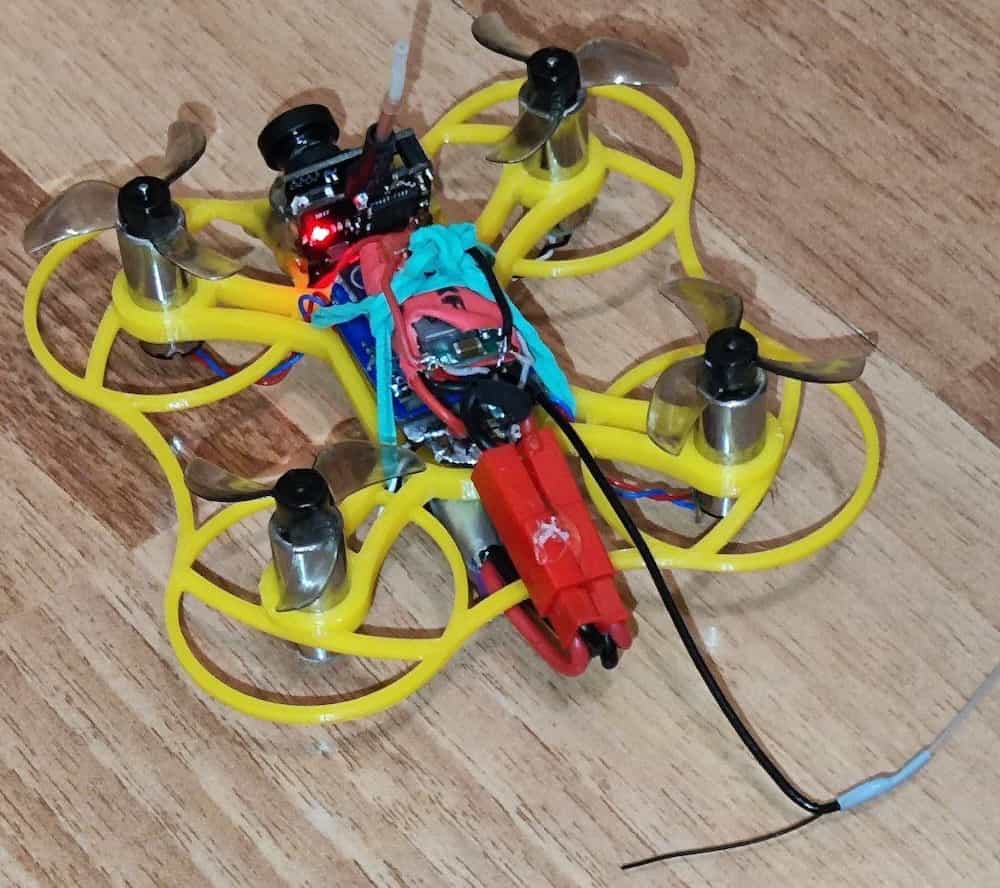

Author: @jeka_chex.

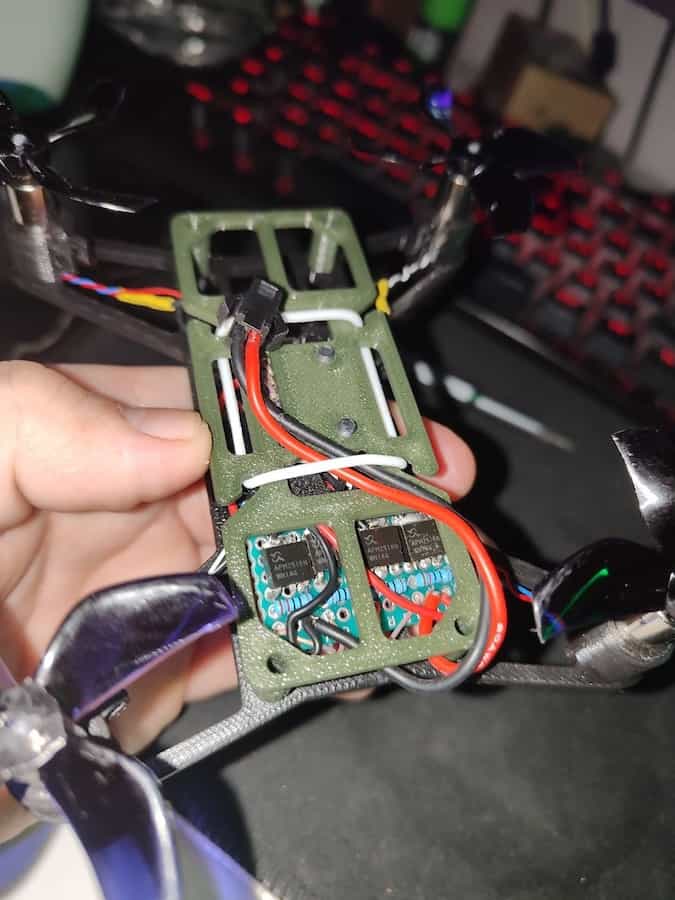

Features: custom frame, FPV camera, 3-blade 31 mm propellers.

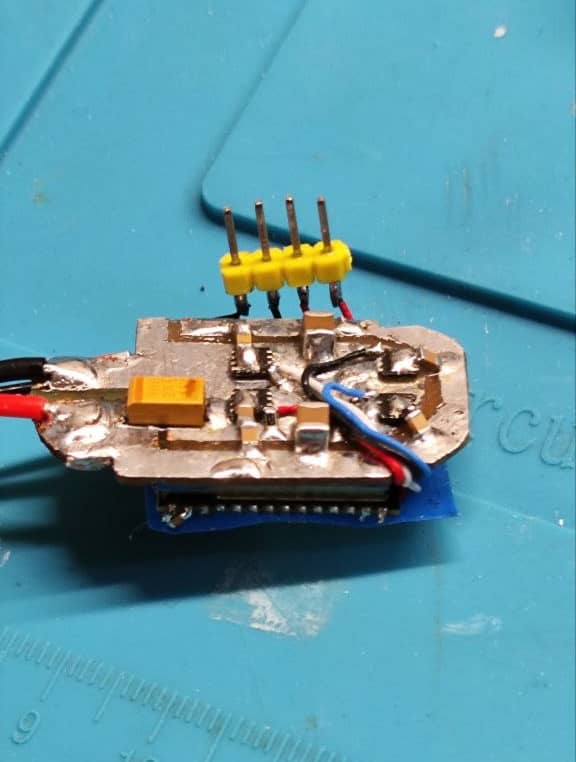

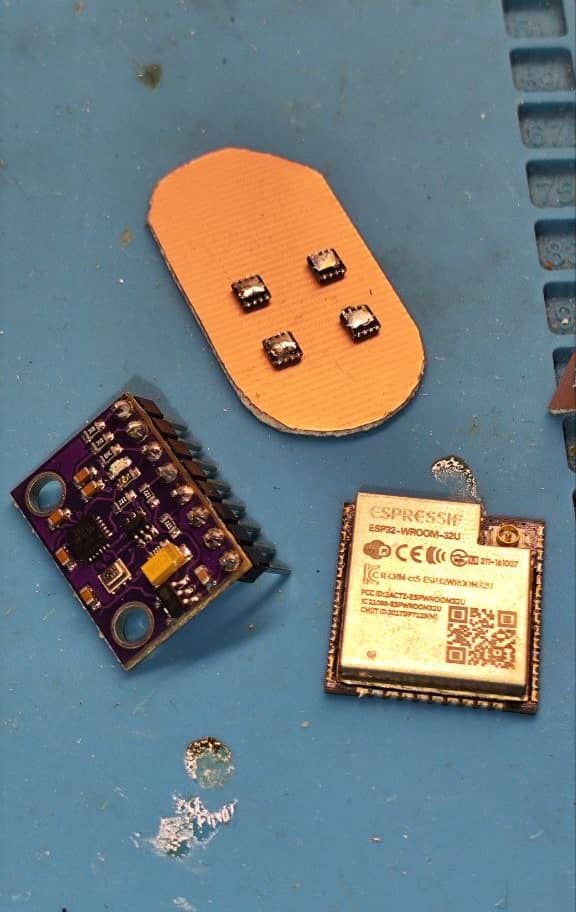

Motor drivers: AON7410 MOSFET + capacitors.
Custom frame files: https://drive.google.com/drive/folders/1QCIc-_YYFxJN4cMhVLjL5SflqegvCowm?usp=share_link.
Flight video:

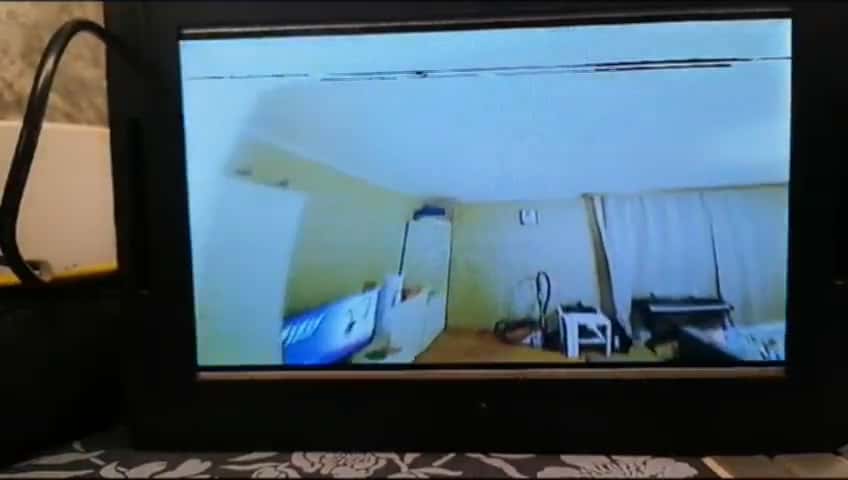

FPV flight video:
Author: @p_kabakov.

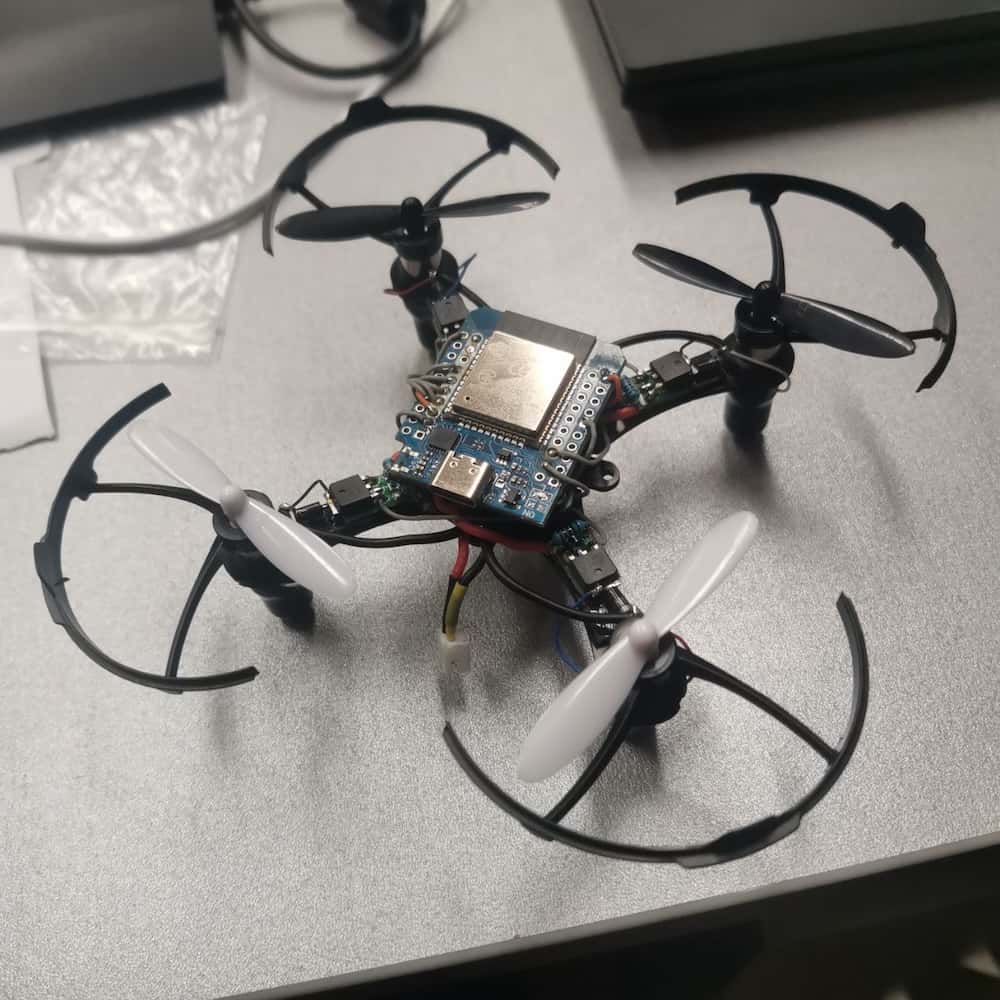

Custom propellers guard 3D-model: https://drive.google.com/file/d/1TKnzwvrZYzYuRTLLERNmnKH71H9n4Xj_/view?usp=share_link.
Features: ESP32-C3 microcontroller is used.
Video.

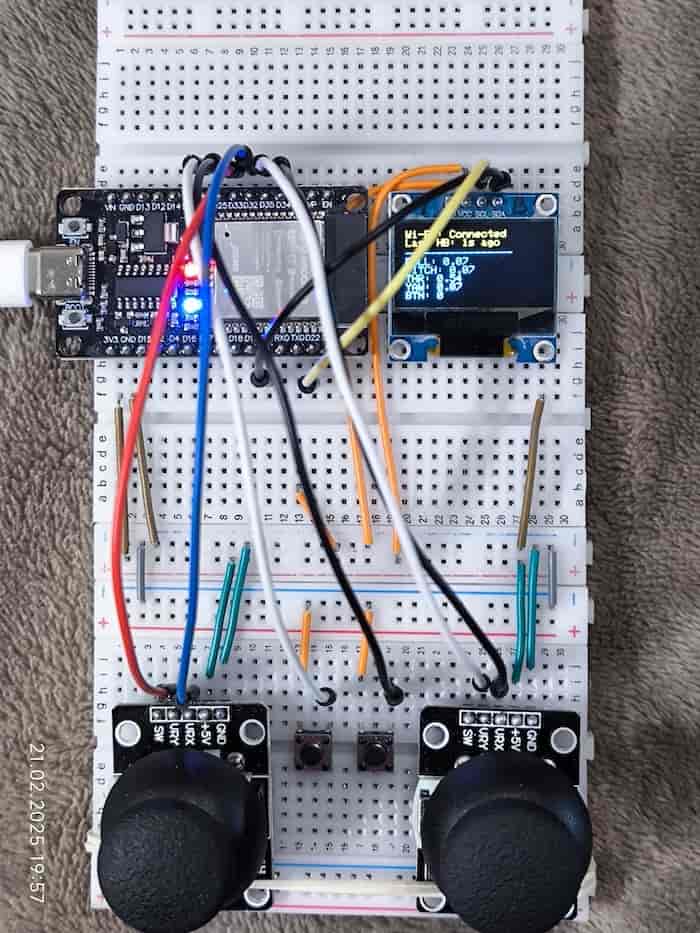

Custom Wi-Fi RC control:
See source and description (in Russian): https://github.com/pavelkabakov/flix/tree/master/rc_control_v1.

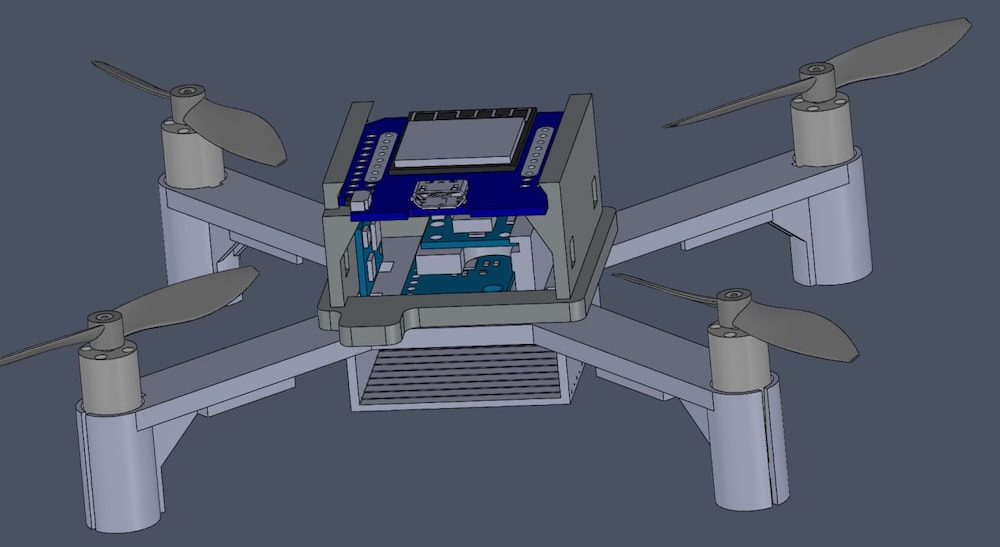

Author: @peter_ukhov.
Features: customized ESP32 holder, GY-ICM20948V2 IMU board, boost-converter for powering the ESP32.
Files for 3D-printing: https://drive.google.com/file/d/1Sma-FEzFBj2HA5ixJtUyH0uWixvr6vdK/view?usp=share_link.
Schematics: https://miro.com/app/board/uXjVN-dTjoo=/?moveToWidget=3458764612179508274&cot=14.
Author: @Alexey_Karakash.
Files for 3D printing of the custom frame: https://drive.google.com/file/d/1tkNmujrHrKpTMVtsRH3mor2zdAM0JHum/view?usp=share_link.
Author: @rudpa.
Author: @peter_ukhov.
Schematics: https://miro.com/app/board/uXjVN-dTjoo=/?moveToWidget=3458764612338222067&cot=14.
