Flix version 0
Flix version 0 (obsolete):
Components list
| Type | Part | Image | Quantity |
|---|---|---|---|
| Microcontroller board | ESP32 Mini |  |
1 |
| IMU and barometer² board | GY-91 (or other MPU-9250 board) |  |
1 |

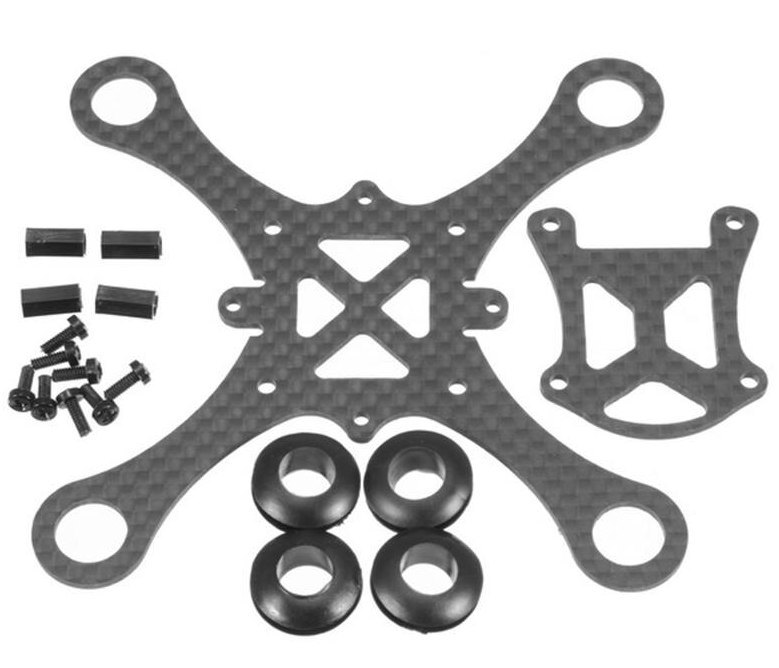

| Quadcopter frame | K100 |  |
1 |
| Motor | 8520 3.7V brushed motor (shaft 0.8mm!) |  |
4 |
| Propeller | Hubsan 55 mm |  |
4 |

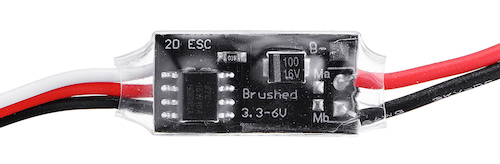

| Motor ESC | 2.7A 1S Dual Way Micro Brush ESC |  |
4 |

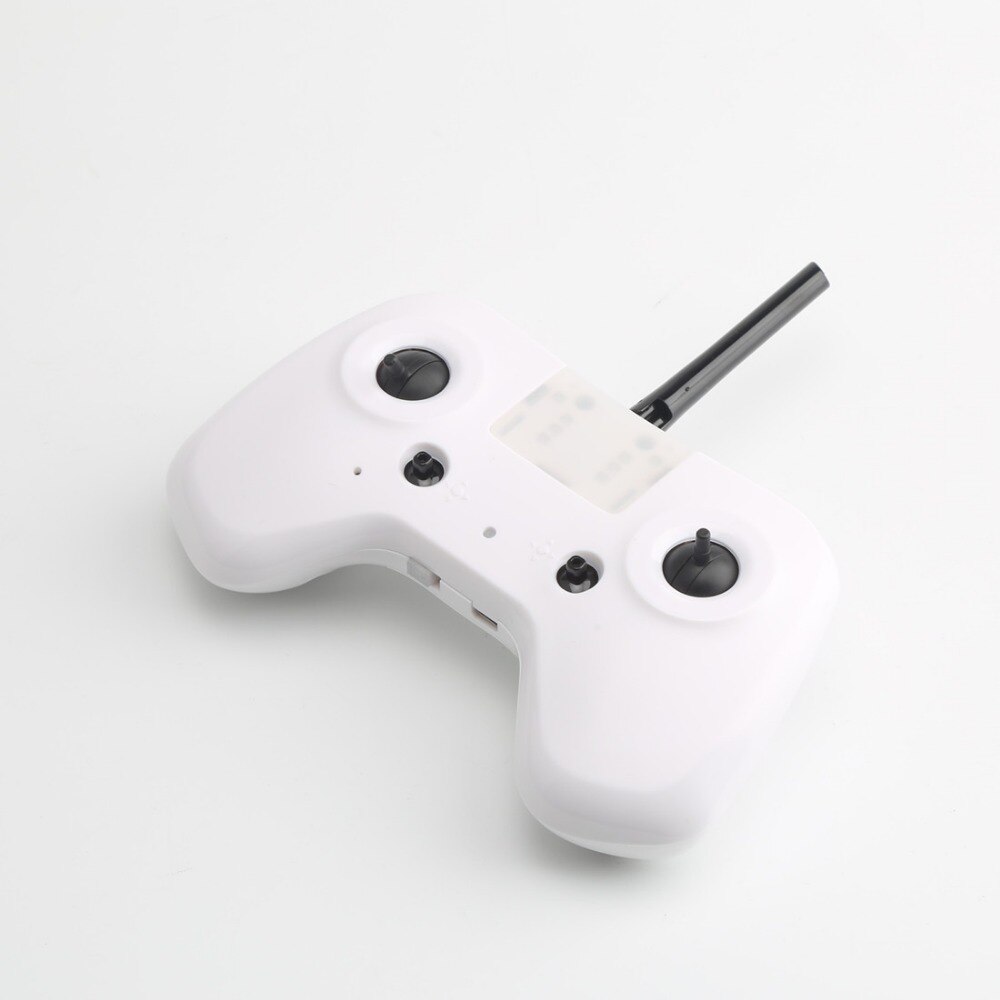

| RC transmitter | KINGKONG TINY X8 |  |
1 |
| RC receiver | DF500 (SBUS) |  |
1 |
 |
|||
| Battery | 3.7 Li-Po 850 MaH 60C | ||
| Battery charger |  |
1 | |
| Wires, connectors, tape, ... |
* — not needed as ESP32 supports software pin inversion.
Schematics
You can also check a user contributed variant of complete circuit diagram of the drone.
