flix

flix (flight + X) — making an open source ESP32-based quadcopter from scratch.

Features

• Simple and clear Arduino based source code.
• Acro and Stabilized flight using remote control.
• Precise simulation using Gazebo.
• In-RAM logging.
• Command line interface through USB port.
• Wi-Fi support.
• ESCs with reverse mode support.
• Textbook and videos for students on writing a flight controller*.
• MAVLink support*.
• Completely 3D-printed frame.*
• Position control and autonomous flights using external camera*.

* — planned.

Version 0

Components

Component	Type	Image	Quantity

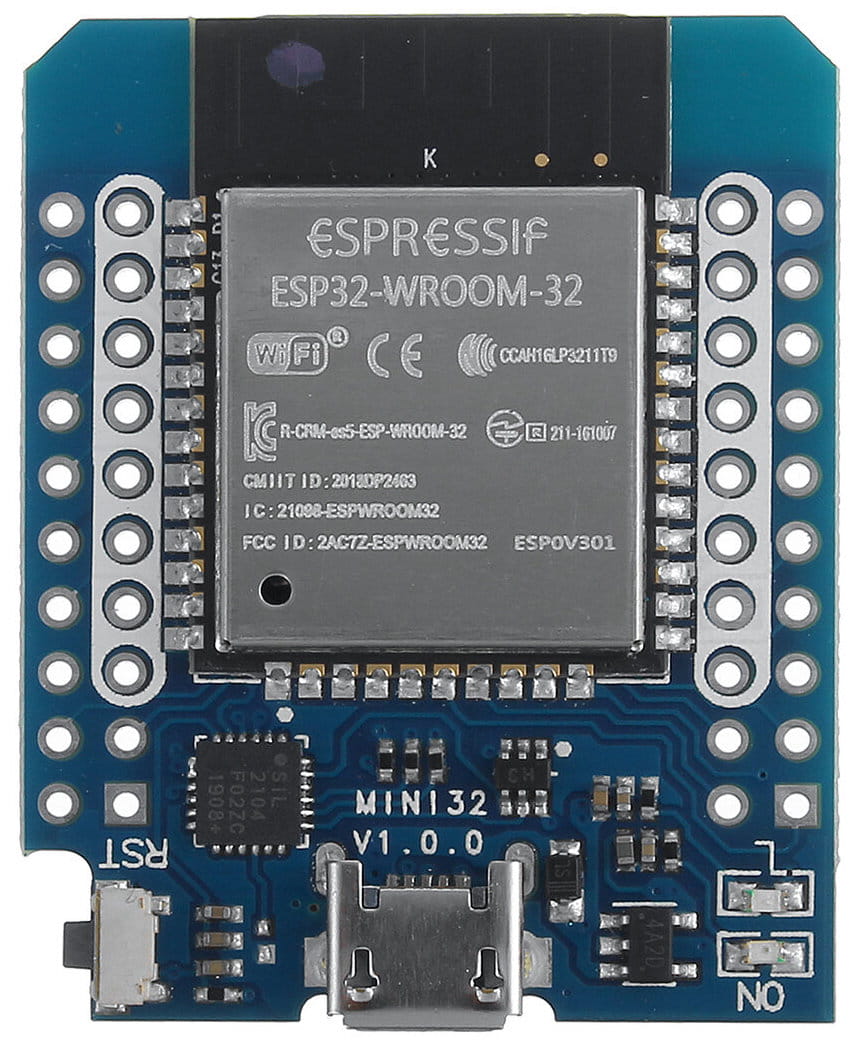

ESP32 Mini	Microcontroller board		1

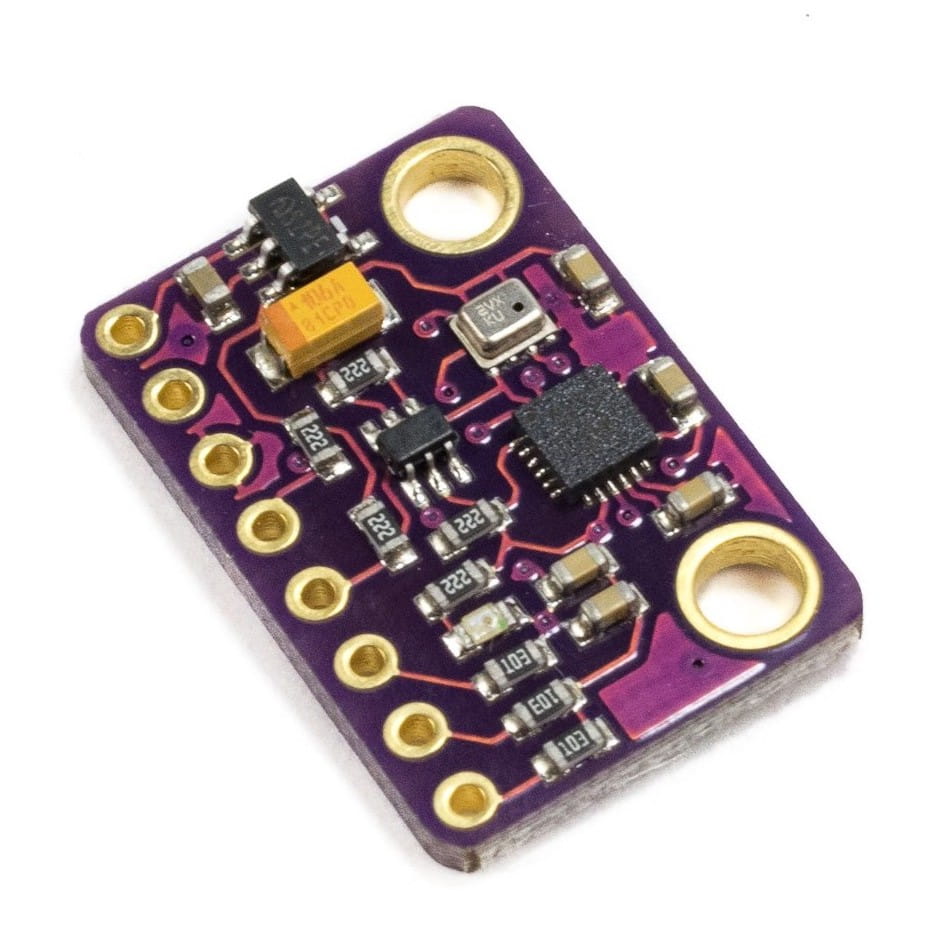

GY-91	IMU+barometer board		1
K100	Quadcopter frame		1

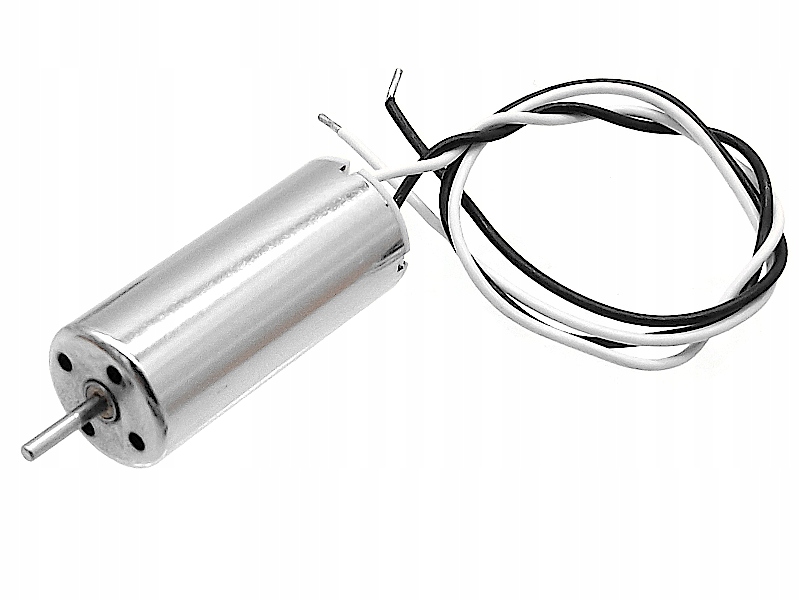

8520 3.7V brushed motor	Motor		4
Hubsan 55 mm	Propeller		4
2.7A 1S Dual Way Micro Brush ESC	Motor ESC		4
KINGKONG TINY X8	RC transmitter		1
DF500 (SBUS)	RC receiver		1
	SBUS inverter
3.7 Li-Po 850 MaH 60C	Battery
	Battery charger
	Wires, connectors, tape, ...
	3D-printed frame parts
